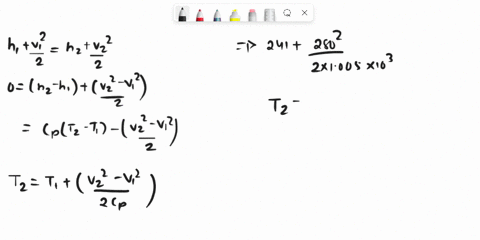

step 1 Our question is a turbojet aircraft is flying in the velocity of 2 .80 meters per second. And in

A turbojet aircraft is flying with a velocity of 280 m / s...

A turbojet aircraft is flying with a velocity of $280 \mathrm{~m} / \mathrm{s}$ at an altitude of $9150 \mathrm{~m}$, where the ambient conditions are $32 \mathrm{kPa}$ and $-32{ }^{\circ} \mathrm{C}$. The pressure ratio across the compressor is $12,$ and the temperature at the turbine inlet is $1100 \mathrm{~K}$. Air enters the compressor at a rate of $50 \mathrm{~kg} / \mathrm{s},$ and the jet fuel has a heating value of $42,700 \mathrm{~kJ} / \mathrm{kg}$. Assuming ideal operation for all components and constant specific heats for air at room temperature, determine $(a)$ the velocity of the exhaust gases, (b) the propulsive power developed, and $(c)$ the rate of fuel consumption.

Key Concepts

Turbojet Engine Operation

Turbojet engines operate by drawing in air, compressing it with a compressor, mixing it with fuel and combusting it, and finally expanding the combustion products through a turbine and exhaust nozzle to generate thrust. This process involves energy conversion from chemical energy (in fuel) to kinetic energy, which propels the aircraft.

Compressor Pressure Ratio

The compressor pressure ratio is the ratio of the pressure after compression to the pressure before compression. It is a key parameter in determining the efficiency of the engine cycle since higher pressure ratios typically allow for higher temperatures in the combustion chamber and improved thermal efficiency of the cycle.

Thermodynamic Cycle (Brayton Cycle)

The Brayton cycle represents the idealized thermodynamic cycle of gas turbine engines, including turbojets. It involves isentropic compression, constant-pressure heat addition, isentropic expansion, and constant-pressure heat rejection. Understanding this cycle aids in analyzing engine performance and efficiency.

Propulsive Power

Propulsive power is the rate at which work is done by the thrust produced by the engine to overcome the aircraft’s drag and accelerate or maintain its speed. It is calculated considering the exhaust velocity and mass flow rate through the engine, linking the thermodynamic processes to the mechanical work on the aircraft.

Fuel Energy Content and Consumption

Fuel energy content (or heating value) represents the amount of energy released per unit mass when the fuel is burned. In engine performance analysis, it is used to relate the amount of fuel burned to the energy supplied to the cycle, thereby determining the fuel consumption rate needed to produce a desired level of thrust or power.

Constant Specific Heat Approximation

Assuming constant specific heats for the working fluid simplifies the thermodynamic analysis by treating the specific heats as invariant with temperature. This approximation facilitates the use of energy balance equations and the application of ideal gas relations in evaluating temperature changes across components like the compressor and turbine.
