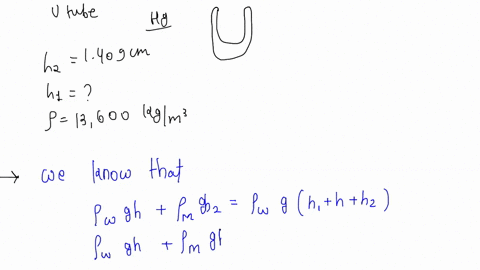

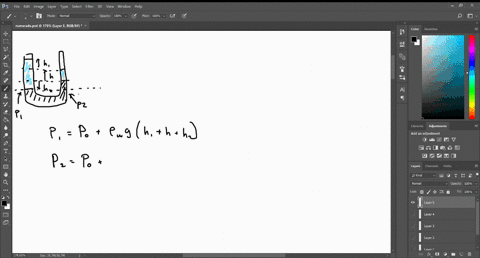

A U-tube of uniform cross-sectional area, open to the atmosphere, is partially filled with mercury. Water is then poured into both arms. If the equilibrium configuration of the tube is as shown in Figure $\mathrm{P} 14.20$ , with $h_{2}=1.00 \mathrm{cm},$ determine the value of $h_{1} .$

Key Concepts

Density and its Impact on Fluid Columns

The density of a fluid is crucial in determining how much pressure it exerts at a given depth. In a U-tube containing different fluids, such as water and mercury, the differing densities directly influence the heights of each fluid column needed to balance the pressures, with a denser fluid requiring a smaller height difference compared to a less dense fluid.

Application of Fluid Statics in U-tube Problems

This topic combines the principles of hydrostatic pressure, pressure equilibrium, and fluid density to analyze and solve problems involving U-tubes. By setting up equations that relate pressure contributions from fluids of different densities and heights, one can determine unknown quantities such as the height of one fluid column when given the configuration of others.

Hydrostatic Pressure

This concept involves understanding that the pressure in a fluid at rest increases with depth due to the weight of the fluid above. The relationship is typically linear for fluids with uniform density and is used to calculate the pressure difference between two points at different depths in a fluid column.

Pressure Equilibrium in Fluids

In a system like a U-tube open to the atmosphere, pressure equilibrium demands that the pressures at any connected fluid interface be equal. This principle enables the calculation of unknown fluid column heights by equating the pressures at the same horizontal level across different fluids.
