A uniform beam of mass mb and length ℓsupports blocks with masses m1 and m2 at two positions, as

step 1 Chapter 12, Problem 3. For this problem, we're developing an equation to find where to place a m

A uniform beam of mass mb and length ℓsupports blocks with...

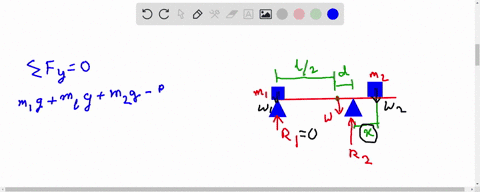

A uniform beam of mass $m_{b}$ and length $\ell$ supports blocks with masses $m_{1}$ and $m_{2}$ at two positions, as in Figure P12.3. The beam rests on two knife edges. For what value of $x$ will the beam be balanced at $P$ such that the normal force at 0 is zero?(FIGURE CAN'T COPY)

Key Concepts

Static Equilibrium

This principle states that for a body to be at rest, the net force and the net torque acting on it must each be zero. In problems involving beams and supports, ensuring that these conditions are met allows one to determine unknown forces or positions that balance the system.

Torque and Moment

Torque (or moment) is the measure of a force's tendency to cause an object to rotate about a pivot point. In the analysis of beams, calculating the moments produced by different masses about a specific point is crucial to setting up equations that ensure rotational equilibrium.

Center of Mass

The center of mass is the point at which the entire mass of an object or system can be considered to be concentrated. For a beam with uniformly distributed mass and additional loaded masses, the center of mass affects the distribution of moments and is key to understanding how the system balances.

Reaction Forces

Reaction forces are the forces exerted by supports to counteract the applied loads. In problems where a particular reaction (such as the normal force at one support) is set to zero, analyzing the conditions that cause this result provides insight into the positioning of loads and the distribution of moments along the beam.
