A uniform electric field pointing in positive x-direction...

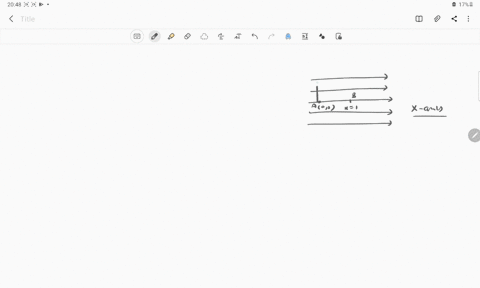

A uniform electric field pointing in positive $x$-direction exists in a region. Let $A$ be the origin, $B$ be the point on the $x$-axis at $x=+1 \mathrm{~cm}$ and $C$ be the point on the $y$-axis at $y=+1 \mathrm{~cm}$. Then, the potentials at the points $A, B$ and $C$ satisfy the condition (a) $v_{A}<V_{B}$ (b) $V_{A}>V_{B}$ (c) $V_{A}<V_{C}$ (d) $V_{A}>V_{C}$

A uniform electric field pointing in positive $x$-direction exists in a region. Let $A$ be the origin, $B$ be the point on the $x$-axis at $x=+1 \mathrm{~cm}$ and $C$ be the point on the $y$-axis at $y=+1 \mathrm{~cm}$. Then, the potentials at the points $A, B$ and $C$ satisfy the condition
(a) $v_{A}<V_{B}$
(b) $V_{A}>V_{B}$
(c) $V_{A}<V_{C}$
(d) $V_{A}>V_{C}$

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Displacement Component Along the Field

When determining potential differences in a uniform electric field, only the displacement component parallel to the field direction contributes to the change in potential. Displacements perpendicular to the field do not affect the potential, which is a key insight in calculating how potentials vary in space.

Uniform Electric Field

A uniform electric field is one in which the field strength and direction are constant at every point in a region. This concept is crucial because it simplifies the analysis of electric potential differences; the constant field means that the potential varies linearly along the direction of the field.

Electric Potential

Electric potential represents the work done per unit charge in moving a test charge from a reference point to a specific location within an electric field. In a uniform field, the potential difference between two points is computed as the negative product of the electric field magnitude and the displacement along the field’s direction.
