A uniform pole is propped between the floor and the ceiling...

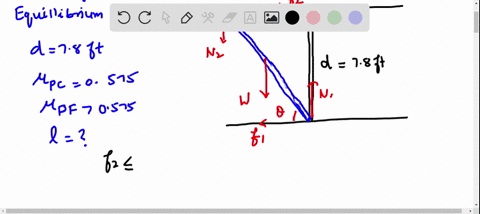

A uniform pole is propped between the floor and the ceiling of a room. The height of the room is 7.80 $\mathrm{ft}$ , and the coefficient of static friction between the pole and the ceiling is $0.576 .$ The coefficient of static friction between the pole and the floor is greater than that between the pole and the ceiling. What is the length of the longest pole that can be propped between the floor and the ceiling?

Key Concepts

Static Equilibrium

This concept means that a body remains at rest when the net forces and net moments (torques) acting on it sum to zero. It is critical in analyzing systems where all applied forces, including friction, support, and weight, must balance both translationally and rotationally.

Frictional Forces

Friction is the resistive force that arises when two surfaces are in contact. In static situations, friction prevents motion up to a maximum value determined by the coefficient of static friction times the normal force. In problems like this, differing friction coefficients at various contact points can limit the attainable configuration.

Torque and Rotational Equilibrium

Torque is the tendency of a force to cause rotation about a pivot, calculated by multiplying the magnitude of the force by its moment arm. Rotational equilibrium is achieved when the sum of all torques about any pivot point is zero, which is essential in analyzing systems where balance and rotation are involved.

Free-Body Diagram

A free-body diagram is a graphical tool used to depict all forces acting on an isolated object. It is fundamental in solving statics problems because it helps set up the equilibrium equations for both forces and torques.

Optimization in Mechanics

This involves determining the maximum or minimum value of a physical quantity—in this case, the length of a pole—subject to constraints such as geometry and friction limits. Optimization requires balancing different forces and moments to ensure stability over the entire range of the parameter.
