A. Use the methods of Chapter 29 to find the potential at...

Key Concepts

Electric Potential from Continuous Charge Distributions

In electrostatics, the electric potential due to a continuous charge distribution is determined by summing (integrating) the contributions from all infinitesimal charge elements. This involves using the relation dV = k dq / r, where k is Coulomb's constant, dq represents a small charge element, and r is the distance between the charge element and the point where the potential is being evaluated. This concept underpins the calculation for various charge geometries.

Integration Techniques in Electrostatics

When evaluating the potential or the electric field generated by an extended charge distribution, integral calculus is used to sum up the infinite contributions from all charge elements. The correct setup of the integral, including appropriate limits and accounting for geometry, is crucial for obtaining the right expression for the potential and field.

Electric Field as the Gradient of Potential

The electric field is intrinsically related to the electric potential, as it is the negative spatial derivative (or gradient) of the potential. This relationship, expressed as E = -?V, allows one to compute the electric field once the potential distribution is known. It is an important principle in electromagnetism, particularly when the potential is easier to calculate directly than the field.

Symmetry in Charge Distributions

Exploiting symmetry in the configuration of a charge distribution simplifies the calculation of potentials and fields. When a distribution has a symmetrical shape, certain components of the field or potential can cancel out or be computed with simpler integrals, thereby reducing the complexity of the mathematical treatment. Recognizing symmetry is key to efficiently solving many problems in electrostatics.

Transcript

00:01 Okay, so we'll know the derivative of the potential for this case can be equal to 1 over 4 pi epsilon 0 and times dq over x minus r.

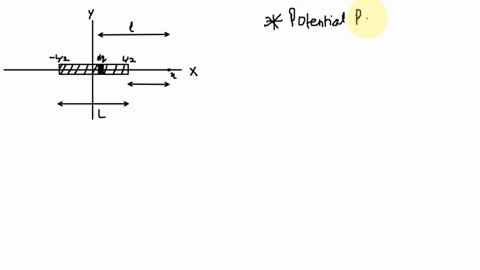

00:10 Okay, x is the position along x axis and r is the length of the rod.

00:18 Okay, so we know q can be equal to linear charge density lambda times r, which we have dq is equal lambda times dr.

00:27 So we know linear charge density is actually charged per unit length, which is a charge.

00:32 Charge over the length of the rod.

00:35 So therefore, we have dq is equal to q over l times dr.

00:40 So now we have dv is equal to 1 over 4 pi epsilon 0 times q over l times dr over x minus r, which will give us 1 over 4 pi epsilon 0 times qdr over l times x minus r.

00:52 So therefore, we know the potential can be equal to integral of dv.

00:58 And the range should be between negative l over 2 to l over 2 because r is changing from negative l over 2 to l over 2.

01:07 So eventually we have v is equal to q over 4x10 xx0 times l and n times the integral.

01:14 And then if we keep calculating, we have v is equal to q over 4 pi epsilon 0 times l and n times the antiderivative of x minus r, which is negative natural log x minus r.

01:33 And then the ranges are between negative l over 2 to l over 2.

01:39 And this will give us v is equal to q over 4 pi epsilon 0 times l and times negative natural log x minus l over 2 plus, which is minus negative negative natural log x plus l over 2 plus...
