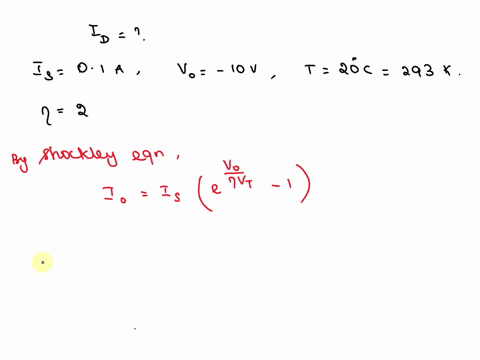

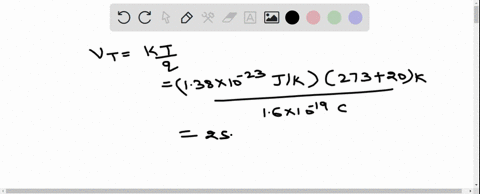

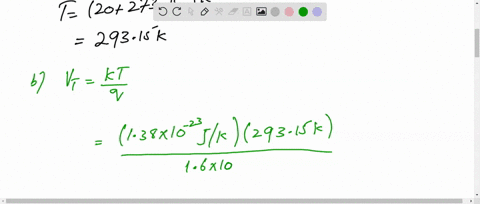

a. Using Eq. (2), determine the diode current at 20^∘ C for a silicon diode with n=2, Is= 0.1 μA

step 1 In this problem I will use the formula ID is equal to IS ex p v by n v t so putting the value he

A. Using Eq. (2), determine the diode current at 20^∘ C for...

a. Using Eq. (2), determine the diode current at $20^{\circ} \mathrm{C}$ for a silicon diode with $n=2, I_{s}=$ $0.1 \mu \mathrm{A}$ at a reverse-bias potential of $-10 \mathrm{~V}$.
b. Is the result expected? Why?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Shockley Diode Equation

This is the fundamental equation used to describe the current-voltage relationship in a diode. It relates the diode current to the applied voltage, saturation current, thermal voltage, and the ideality factor. The equation provides insight into how the device behaves under forward and reverse bias conditions, making it essential for analyzing diode operation in circuits.

Reverse Bias Behavior

Under reverse bias conditions, the diode current is very small and is primarily determined by the saturation current. In a reverse bias, the potential barrier is increased, and only a minimal leakage current flows, which is generally independent of the applied voltage. This characteristic is used to explain why the current remains very small in a reverse-biased diode.

Saturation Current and Ideality Factor

The saturation current represents the small current that flows through the diode even when it is reverse-biased. The ideality factor (n) accounts for deviations from the ideal behavior due to recombination and other effects in the diode. Both these parameters are crucial in quantifying the diode's performance using the Shockley equation, and they help predict whether the computed current values, especially under reverse bias, are reasonable.
