(a) Using information in the preceding problem, find the...

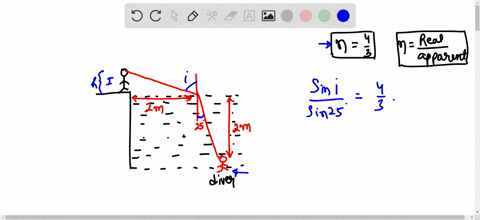

(a) Using information in the preceding problem, find the height of the instructor's head above the water, noting that you will first have to calculate the angle of incidence.
(b) Find the apparent depth of the diver's head below water as seen by the instructor.

Key Concepts

Apparent Depth

Apparent depth is the concept describing how the observed depth of an object under water appears different from its actual depth due to the refractive effects at the water-air interface. Because of refraction, objects submerged in water seem closer to the surface than they really are, a phenomenon that can be quantified using geometric and trigonometric relationships alongside the refractive properties of the media.

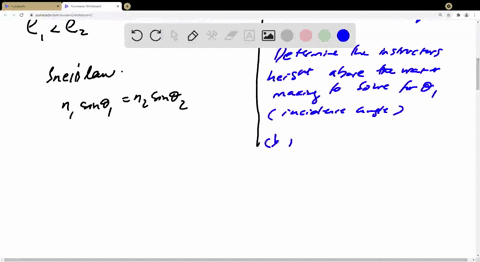

Snell's Law

Snell's law provides the quantitative relationship between the angles of incidence and refraction when light transitions between two media with different refractive indices. It is expressed by the formula n?sin?? = n?sin??, where n? and n? are the refractive indices of the first and second media, respectively. This law is essential for determining how much the light ray bends at the interface.

Refraction

Refraction is the bending of light as it passes from one medium to another with different optical densities, such as from water to air. This change in direction occurs because light travels at different speeds in different media, altering the path of the light ray and affecting how objects are perceived when seen across a boundary.

Angle of Incidence

The angle of incidence is the angle between an incoming light ray and the normal (an imaginary line perpendicular) to the interface at the point of contact. Accurately calculating this angle is a crucial step in applying Snell's law to determine the new direction of the ray as it refracts.
