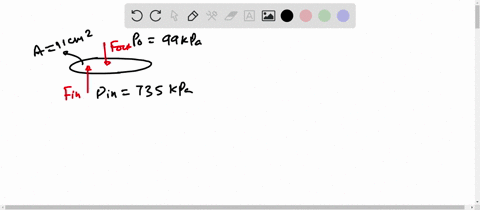

A valve in the cylinder shown in Fig. P 1.44 has a cross-sectional area of 11 cm^2 with a press

step 1 So in this problem, we want to find the force needed to open this valve on a cylinder. So what w

A valve in the cylinder shown in Fig. P 1.44 has a...

A valve in the cylinder shown in Fig. $\mathrm{P} 1.44$ has a cross-sectional area of $11 \mathrm{~cm}^{2}$ with a pressure of $735 \mathrm{kPa}$ inside the cylinder and $99 \mathrm{kPa}$ outside. How large a force is needed to open the valve?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Pressure

Pressure is defined as the force exerted per unit area and is a fundamental concept in fluid mechanics. It helps quantify how much force is distributed over a given area and is essential in understanding how fluids behave under different conditions.

Area

Area refers to the surface over which a force or pressure is applied. In the context of fluid mechanics, the cross-sectional area where a pressure is applied determines the magnitude of the total force transmitted through the fluid.

Pressure Differential

The pressure differential is the difference between the pressures on two sides of a surface. This difference is crucial because it creates a net force that can cause movement or mechanical action, such as opening a valve.

Force Calculation from Pressure Difference

The force exerted by a pressure difference across an area is calculated using the formula F = ?P × A, where ?P is the pressure differential and A is the cross-sectional area. This principle is widely used in analyzing hydraulic and pneumatic systems.
