A Van de Graaff generator (see Figure 25.29 ) is operating...

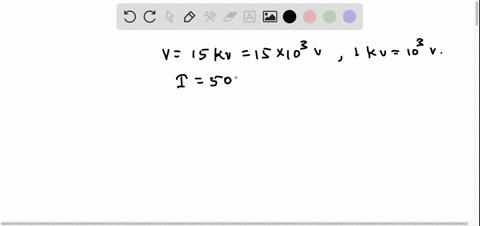

A Van de Graaff generator (see Figure 25.29 ) is operating so that the potential difference between the high-voltage electrode $\mathrm{B}$ and the charging needles at $\mathrm{A}$ is $15.0 \mathrm{kV}$. Calculate the power required to drive the belt against electrical forces at an instant when the effective current delivered to the high-voltage electrode is $500 \mu \mathrm{A}$.

Key Concepts

Electric Potential Difference

Electric potential difference, commonly known as voltage, represents the work done per unit charge in moving a charge from one point to another in an electric field. It is a measure of the energy available to drive electric charges through a circuit or a device, and is a fundamental parameter in analyzing how energy is transferred or converted in electrical systems.

Electric Current

Electric current is defined as the rate at which charge flows through a given point or cross-sectional area in a circuit. It is a critical concept because it determines how much charge is moving over time, and when combined with voltage, it can be used to calculate the rate of energy transfer in electrical systems.

Electrical Power

Electrical power quantifies the rate at which energy is transferred or converted in an electrical system. It is typically calculated as the product of voltage and current. This relationship is fundamental for determining how much energy is required or generated in various components of electrical devices, including overcoming forces in systems like electrostatic generators.

Energy Conversion in Electrostatic Generators

Energy conversion in devices such as electrostatic generators involves transforming mechanical energy into electrical energy. This process often includes overcoming electrical forces that resist the movement of charge, making it essential to account for both the electrical potential difference and the current when evaluating the power or work required to maintain operation. Understanding these dynamics is key to analyzing the efficiency and performance of high-voltage apparatuses.
