A variable air capacitor used in a radio tuning circuit is...

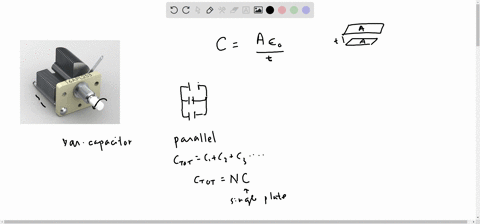

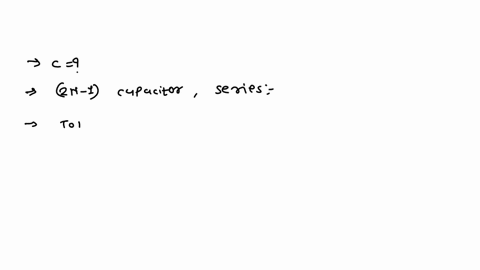

A variable air capacitor used in a radio tuning circuit is made of $N$ semicircular plates each of radius $R$ and positioned a distance $d$ from its neighbors, to which it is electrically connected. As shown in Figure $\mathrm{P} 26.10,$ a second identical set of plates is enmeshed with its plates halfway between those of the first set. The second set can rotate as a unit. Determine the capacitance as a function of the angle of rotation $\theta,$ where $\theta=0$ corresponds to the maximum capacitance. CAN'T COPY THE FIGURE

Key Concepts

Geometric Effects on Capacitance

The geometry of the capacitor’s conductive elements, such as the shape and relative position of the plates, plays a critical role in determining capacitance. When the overlapping area between the plates is modified—by, for example, rotating one set of plates relative to another—the capacitance changes accordingly. This principle is fundamental in understanding capacitors that use complex plate arrangements.

Parallel Combination of Capacitances

When multiple capacitor elements are connected electrically to form a larger effective capacitor, they often behave like capacitors arranged in parallel. In a parallel configuration, the total capacitance is the sum of the individual capacitances. This concept is important when considering devices where several identical or similar capacitive elements contribute collectively to the overall capacitance, as seen in composite variable capacitor designs.

Capacitance Fundamentals

Capacitance is the measure of a system's ability to store electrical charge per unit potential difference. In its simplest form, for a parallel-plate capacitor, it is directly proportional to the plate area and inversely proportional to the distance between the plates. This concept is the cornerstone of understanding how geometric and material changes affect a capacitor's performance.

Variable Capacitor Operation

A variable capacitor is one in which the capacitance can be mechanically adjusted, typically by changing the overlapping area between conductive elements. This variability is utilized in tuning circuits, such as those found in radios, where precise adjustments of the resonant frequency are required. The mechanical adjustment, like rotation, changes the effective area contributing to the capacitance.
