A vector equation can be written as A+>B →C=D →≥E. The directions of all vectors and magnitudes

step 1 In this question we have to make a copy or a sketch of the given vector. Also we have to use the

A vector equation can be written as A+>B →C=D →≥E. The...

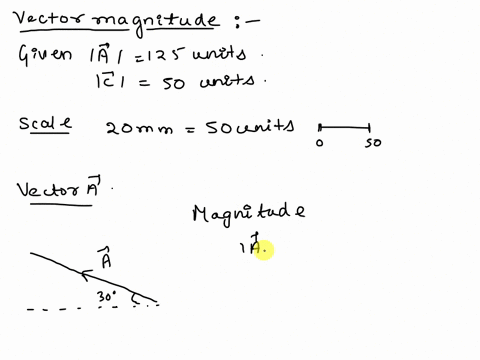

A vector equation can be written as $\mathrm{A}+>\mathrm{B} \rightarrow \mathrm{C}=\mathrm{D} \rightarrow \geq$ E. The directions of all vectors and magnitudes of $\mathbf{A}, \mathbf{B}$, and $\mathbf{D}$ are shown in Figure P3.58. Graphically (using either manual drawing techniques or CAD) determine the magnitudes of vectors $C$ and $\mathbf{E}$. (FIGURE CAN'T COPY)

Key Concepts

Vector Representation

This concept involves expressing quantities as vectors, which have both magnitude and direction. In problems of this nature, each vector is depicted as an arrow, where the length of the arrow corresponds to its magnitude (or size) and the arrow's orientation indicates its direction. This duality is essential for accurately describing and manipulating physical quantities like displacement, force, and velocity.

Vector Addition

Vector addition is the process of combining two or more vectors to find a resultant vector. The most common method for adding vectors is the tip-to-tail technique, where the tail of one vector is placed at the tip of the previous vector. This approach can also be explained via the parallelogram method when adding two vectors, where the resultant is represented by the diagonal of the constructed parallelogram. This operation is foundational in solving vector equations and determining unknown vectors.

Graphical Methods for Vector Analysis

This key concept refers to the use of visual representations to solve vector problems. Techniques include manual drawing methods using scale diagrams on graph paper, or computer-aided design (CAD) applications where vectors are drawn to scale. Through these means, one can measure the lengths of resultant vectors and angles between vectors, which directly correspond to the magnitudes and directions needed for solving equations.

Determination of Unknown Vectors

In the context of a vector equation involving known and unknown vectors, the graphical method enables the step-by-step construction and closure of the vector diagram. By appropriately drawing the known vectors and applying the principles of vector addition, one can deduce the direction and magnitude of the unknown vectors by measuring from the initial point to the final resultant point. This method is particularly useful when exact analytical values are difficult to compute, emphasizing the importance of scale accuracy in the diagram.
