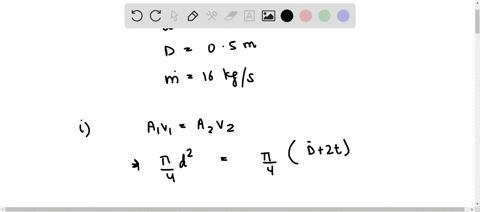

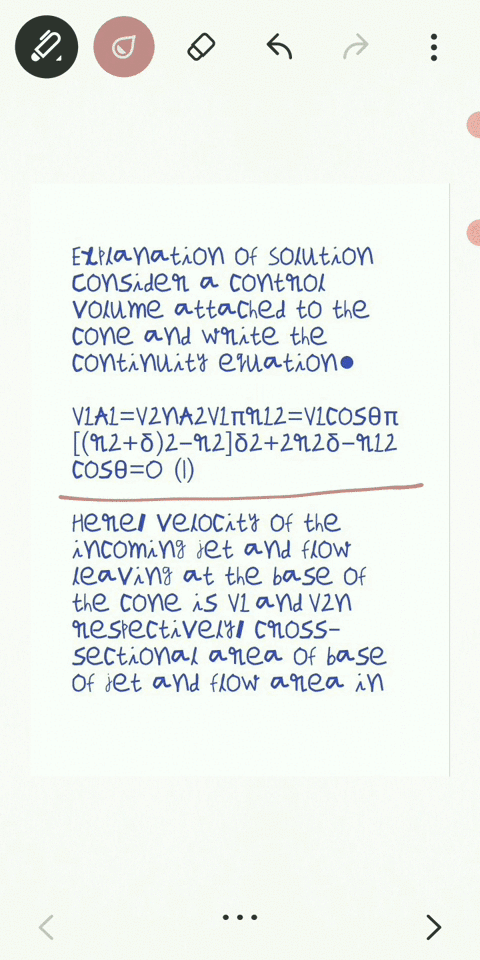

A water jet $50 \mathrm{~mm}$ in diameter impinges on a cone as shown in Figure P6.4. If the water velocity has the same magnitude at all points in the flow, calculate the thickness of the liquid layer at a location where the cone diameter is $0.5 \mathrm{~m}$. If the mass flowrate of the water is $16 \mathrm{~kg} / \mathrm{s}$, calculate the flowspeed. Figure P6.4 can't copy

Key Concepts

Thin Film Flow over Curved Surfaces

When a fluid spreads over a surface in the form of a thin layer, particularly on curved surfaces like conical or annular geometries, the thickness of the film becomes an important parameter. The analysis involves understanding how the liquid distributes itself over the available surface area, often by considering the film's width (or thickness) in relation to the wetted perimeter. This concept is essential in applications where the geometry influences the local flow properties without significantly affecting the overall velocity field.

Conservation of Mass

This principle states that in a steady-state flow the mass entering any control volume must equal the mass exiting it. In fluid dynamics, it is crucial for setting up relationships between different sections of a flow system, particularly when the flow geometry changes, as the density and velocity interact to deliver a consistent mass flow rate throughout the process.

Continuity Equation

The continuity equation mathematically expresses the conservation of mass in fluid dynamics. For an incompressible fluid, it simplifies to the product of cross-sectional area and flow velocity being constant along the streamline. This relationship is fundamental when analyzing how a fluid adjusts its speed and thickness as it moves from one region with a given geometry to another.

Mass Flow Rate

Mass flow rate is the amount of fluid mass that passes through a given cross-sectional area per unit time. In practical applications, it is determined by the product of the fluid density, the velocity of the flow, and the cross-sectional area through which the fluid is moving. This concept enables the linking of flow properties at different stages of a process as well as the determination of unknown parameters when certain flow characteristics are provided.
