A water tank is being towed on an uphill road that makes 20^∘ with the horizontal with a constan

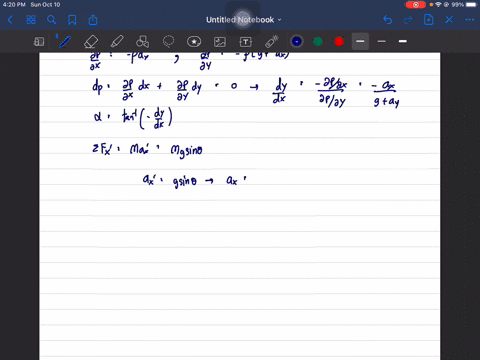

step 1 okay so for the angle of inclination we have tan of theta equal to AC over G which is equal to 2

A water tank is being towed on an uphill road that makes...

A water tank is being towed on an uphill road that makes $20^{\circ}$ with the horizontal with a constant acceleration of $5 \mathrm{~m} / \mathrm{s}^2$ in the direction of motion. Determine the angle the free surface of water makes with the horizontal. What would your answer be if the direction of motion were downward on the same road with the same acceleration?

Key Concepts

Non-Inertial Reference Frames

This concept refers to frames of reference that are accelerating relative to an inertial frame. In such frames, observers perceive additional fictitious forces (or pseudo forces) acting on objects, which must be taken into account when analyzing dynamics and equilibrium. Such frames are essential for properly analyzing problems where the observer or container is accelerating, as in the case of a moving vehicle.

Pseudo Force

A pseudo force is an apparent force that arises when analyzing motion in a non-inertial (accelerating) reference frame. It is not caused by any physical interaction but is introduced to account for the observed effects of acceleration. This force allows one to apply Newton’s laws in an accelerating frame by combining it with real forces such as gravity.

Effective Gravity

Effective gravity is the vector sum of the gravitational acceleration and the acceleration of the non-inertial frame (often represented by the pseudo force per unit mass). It dictates the apparent direction of the force experienced in the accelerating frame. This effective gravitational field influences the orientation of a fluid’s free surface, as the surface aligns perpendicular to the net acceleration.

Fluid Equilibrium in Accelerating Frames

In a stationary fluid within an accelerating container, the free surface adjusts itself to remain perpendicular to the effective gravitational field—the combination of true gravitational acceleration and the acceleration of the frame. This equilibrium condition determines the angle at which the free surface settles relative to an external reference, such as the horizontal.
