A well-insulated heat exchanger is to heat water (cp=4.18 kJ / kg · ^∘ C) from 25^∘ C to 60^∘ C

step 1 Hi everyone, Part 8. The rate of heat transfer, 2 .D. will be mass flow rate into specific heat,

A well-insulated heat exchanger is to heat water (cp=4.18...

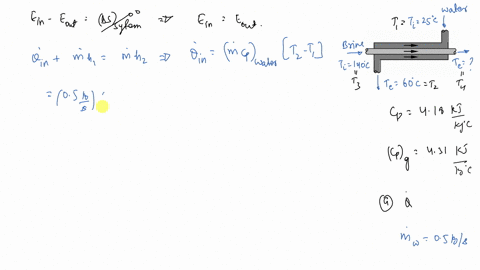

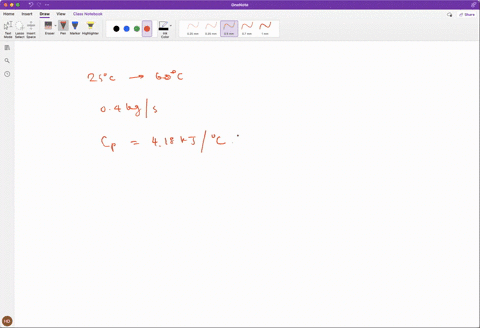

A well-insulated heat exchanger is to heat water $\left(c_{p}=4.18 \mathrm{~kJ} / \mathrm{kg} \cdot{ }^{\circ} \mathrm{C}\right)$ from $25^{\circ} \mathrm{C}$ to $60^{\circ} \mathrm{C}$ at a rate of $0.4 \mathrm{~kg} / \mathrm{s}$ The heating is to be accomplished by geothermal water $\left(c_{p}=4.31 \mathrm{~kJ} / \mathrm{kg} \cdot{ }^{\circ} \mathrm{C}\right)$ available at $140^{\circ} \mathrm{C}$ at a mass flow rate of $0.3 \mathrm{~kg} / \mathrm{s}$. The inner tube is thin-walled and has a diameter of $0.6 \mathrm{~cm}$. Determine $(a)$ the rate of heat transfer and $(b)$ the rate of exergy destruction in the heat exchanger.

Key Concepts

Exergy Destruction

Exergy destruction represents the loss of useful work potential due to irreversibilities in a process. In the context of a heat exchanger, it quantifies the efficiency losses resulting from finite temperature differences and non-ideal heat transfer, reflecting the impacts of the second law of thermodynamics.

Exergy Analysis

Exergy analysis assesses the quality or potential of energy to do work and identifies irreversibilities in a system. It goes beyond energy conservation by accounting for entropy production and losses, providing insight into system efficiency limits and opportunities for improvement.

Heat Exchanger

A heat exchanger is a device designed to transfer thermal energy between two or more fluids without mixing them. Its analysis involves understanding flow arrangements, temperature gradients, and the efficiency of heat transfer, which are central to energy conversion processes.

Rate of Heat Transfer

The rate of heat transfer quantifies the amount of energy transferred per unit time from one fluid to another. It is calculated using parameters such as mass flow rate, specific heat capacity, and temperature differences, and is essential for understanding the performance of thermal systems.

Energy Balance

An energy balance is the application of the conservation of energy principle to a system, ensuring that the energy entering a system minus the energy leaving equals the change in energy stored. In heat exchangers, it is used to relate the heat lost by one fluid to the heat gained by the other.
