(a) What current is needed to transmit 1.00 ×10^2 MW of power at 480 V ? (b) What power is dissi

step 1 Now in this question we want to find what is the power that is being used up by the transmission

(a) What current is needed to transmit 1.00 ×10^2 MW of...

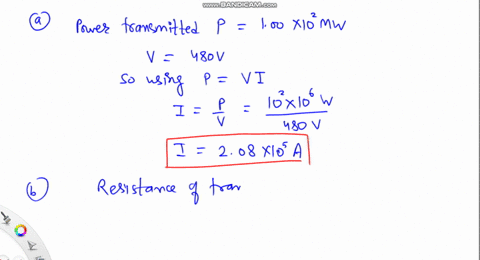

(a) What current is needed to transmit $1.00 \times 10^{2} \mathrm{MW}$ of power at $480 \mathrm{V} ?$ (b) What power is dissipated by the transmission lines if they have a $1.00-\Omega$ resistance? (c) What is unreasonable about this result? (d) Which assumptions are unreasonable, or which premises are inconsistent?

Key Concepts

Assumptions in System Modeling

This concept deals with the simplifications or idealizations made when modeling electrical systems. In the context of the problem, certain assumptions such as using a low transmission voltage or ignoring factors like impedance and reactive power, can lead to unrealistic or impractical results. Evaluating these assumptions is a critical step in assessing the validity and feasibility of a theoretical approach.

Resistive Power Loss

Resistive power loss refers to the loss of electrical energy as heat in a circuit due to the resistance of the conductors. This loss is calculated using the formula P_loss = I²R, where I is the current and R is the resistance. In power transmission, high currents can lead to significant energy losses if the resistance of the transmission lines is not minimized.

Practical Considerations in Power System Design

In designing power transmission systems, engineers must consider practical constraints such as the efficiency of transmission, safety, and economic viability. High currents generated from low-voltage transmission can cause excessive heating and energy losses, making the design impractical. This leads to the use of higher voltages in actual power systems to reduce current, thereby minimizing resistive losses and enhancing overall efficiency.

Electrical Power Transmission

This concept involves the process of delivering electric power from a power plant to end users. It includes considerations of voltage level, current, and the efficiency of transmission systems. Low voltage transmission, for instance, requires high current to deliver the same power, which can lead to significant energy losses in the form of heat.

Ohm's Law

Ohm's Law is a fundamental principle of electricity that states the current through a conductor between two points is directly proportional to the voltage across the two points and inversely proportional to the resistance. It is usually expressed as I = V/R and is essential for determining the relationship between voltage, current, and resistance in a circuit.
