(a) What is the equivalent resistance between points A and B if R=1.0 Ω? (b) If a 20 V emf is co

(a) What is the equivalent resistance between points A and B...

Key Concepts

Equivalent Resistance

Equivalent resistance is the single resistor value that can replace a network of resistors without changing the overall electrical behavior of the circuit. It is calculated by analyzing the configuration of the resistors—whether they are connected in series, parallel, or in more complex combinations—to determine how they share or divide the current and voltage. This concept simplifies complex circuits into more manageable parts for analysis.

Series and Parallel Combinations

Series and parallel combinations are fundamental configurations in circuit analysis. In series, resistors add directly because the same current flows through each resistor, leading to an increased total resistance. In parallel, the reciprocal of the total resistance is the sum of the reciprocals of the individual resistances since the voltage across each resistor is the same, resulting in a lower equivalent resistance. Recognizing these patterns is key to analyzing and simplifying complex resistor networks.

Ohm's Law

Ohm’s Law is a fundamental principle in electrical circuits that relates voltage, current, and resistance through the simple equation V = IR. This law allows one to calculate any one of these quantities if the other two are known. It is essential for determining the current flowing through a resistor when a voltage is applied, as well as for analyzing the behavior of more complex circuits after they are simplified to their equivalent resistances.

Current Distribution in Resistor Networks

Current distribution refers to how electrical current splits or combines when the circuit contains multiple paths, particularly in parallel networks. Understanding how current divides among different branches is crucial when calculating the specific current through a resistor within a network, especially when connected to a given power source. This concept often involves applying Kirchhoff's Current Law, which states that the total current entering a junction must equal the total current leaving it.

Transcript

00:01 Here we have to calculate the resistance between points a and b, and then we'll have to find the current which flow through the resistance of 2 oms.

00:10 So for the simplicity, let's label all the resistances as r1, r2, r3, and r4.

00:21 And r1 is 1 omens, as we know from the task.

00:24 So let's first find the resistance between points a and b.

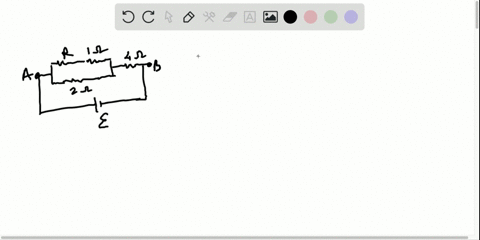

00:32 In order to do it, we have to redraw this rocket, starting from point a to point b.

00:41 So at point a we have a connection of r1 and r2 in siri, and it's also connected with r3 in parallel.

00:58 And then it's all connected with r4 in criv.

01:14 So let's move point a little bit.

01:18 Point a is here and it's all connected to the battery with the emf of 24 volts.

01:34 Sorry of 20 volts.

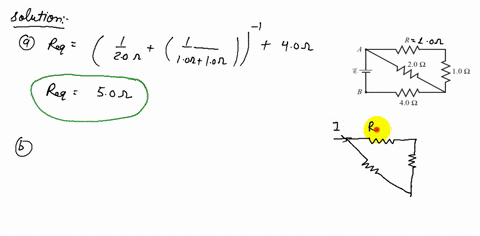

01:39 Now we can calculate the resistance of between points a and b.

01:45 It can be found as r4.

01:48 Plus the resistance of one two resistance resistors one two and three so now we have to find this component it's a parallel connection of r3 with r1 and r2 which are in theory therefore one over r1 2 or which is r1 plus r2 plus r3 divided by r1 plus r2 multiplied by r3.

02:38 So therefore r1 to 3 can be found as the sum of r1 and r2 multiplied by r3 all divided by sum of r1 2 and 3.

02:54 Let's calculate this number.

02:56 So r1 as we know is one om our 2 is 1 om and r 3 is 2 oms so it's 1 .0 om plus 1 .0 om multiplied by 2 .0 oms and it's all divided by 1 .0 om plus 1 .0 plus 2 .0 om so which is in turn 4 .0 om divided by 4 .0 om...
