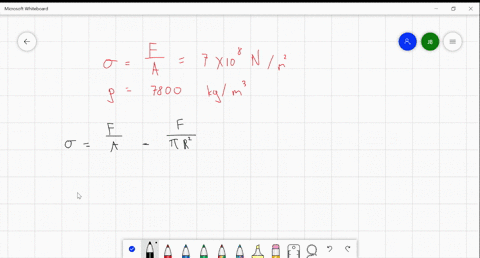

(a) What is the fastest transverse wave that can be sent along a steel wire? For safety reasons, the maximum tensile stress to which steel wires should be subjected is $7.00 \times 10^{8} \mathrm{N} / \mathrm{m}^{2}$ . The density of steel is 7800 $\mathrm{kg} / \mathrm{m}^{3} .$ (b) Does your answer depend on the diameter of the wire?

(a) What is the fastest transverse wave that can be sent along a steel wire? For safety reasons, the maximum tensile stress to
which steel wires should be subjected is $7.00 \times 10^{8} \mathrm{N} / \mathrm{m}^{2}$ . The density of steel is 7800 $\mathrm{kg} / \mathrm{m}^{3} .$ (b) Does your answer depend on the diameter of the wire?

Key Concepts

Tensile Stress and Tension Relationship

Tensile stress is defined as the force applied per unit area. When considering a wire, the maximum allowable tensile stress dictates the maximum tension (T_max) the wire can sustain without failing. Since T = stress × cross-sectional area, the allowable tension is inherently linked to both the material property (stress limit) and the geometry of the wire.

Independence from Diameter

When relating the maximum tension due to tensile stress to the wave speed, the cross-sectional area appears in both the expression for the tension (T_max = ?_max × A) and the linear density (? = ? × A). This results in the cross-sectional area canceling out, thereby making the maximum wave speed dependent solely on the tensile stress limit and the material density, independent of the wire's diameter.

Transverse Wave Propagation

Transverse waves are disturbances that travel perpendicular to the direction of the medium's displacement. In a stretched wire or string, the speed at which these waves propagate is determined by the tension in the wire and its mass per unit length. This concept forms the basis for understanding how mechanical energy is transmitted along a medium.

Wave Speed Formula

The speed of a transverse wave in a stretched string is given by the formula v = ?(T/?), where T is the tension in the string and ? is its linear mass density. This formula shows that the wave speed increases as the tension increases or as the mass per unit length decreases.
