a. What is the potential difference across each resistor in Figure P 23.6 ? b. Draw a graph of t

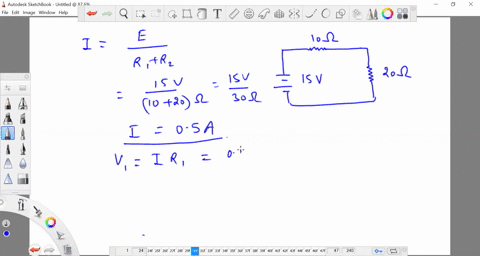

step 1 Hi. In the first part of the given problem, there is a circuit diagram having two resistors in s

A. What is the potential difference across each resistor in...

a. What is the potential difference across each resistor in Figure $\mathrm{P} 23.6 ?$ b. Draw a graph of the potential as a function of the distance traveled through the circuit, traveling clock-wise from $V=0 \mathrm{V}$ at the lower left corner. See Figure $\mathrm{P} 23.9$ for an example of such a graph.

a. What is the potential difference across each resistor in Figure $\mathrm{P} 23.6 ?$
b. Draw a graph of the potential as a function of the distance traveled
through the circuit, traveling clock-wise from $V=0 \mathrm{V}$ at the lower left corner. See Figure $\mathrm{P} 23.9$ for an example of such a graph.

Key Concepts

Graphical Representation of Electric Potential

Graphing electric potential as a function of distance traveled through a circuit provides a visual depiction of how voltage changes along the path of current flow. Such graphs typically illustrate linear drops across resistors and help in understanding the behavior of the electric potential in different regions of the circuit.

Voltage Distribution in Resistive Circuits

Voltage distribution in resistive circuits involves understanding how a total voltage divides among various resistors. In series circuits, the voltage provided by the source is partitioned among resistors proportionally to their resistances. This concept is key when determining potential differences across individual resistors.

Potential Difference

Potential difference, or voltage, is a measure of the energy per unit charge between two points in an electric field. It represents the work done to move a charge from one point to another and is crucial for understanding how energy is distributed across circuit elements, such as resistors.

Ohm’s Law

Ohm’s Law is a fundamental relation in electric circuits that states the voltage across a resistor is directly proportional to the current flowing through it and the resistance of the resistor (V = IR). This principle is used to calculate and understand the voltage drop across each resistor in a circuit.

Kirchhoff’s Voltage Law (KVL)

Kirchhoff’s Voltage Law states that the algebraic sum of all potential differences around any closed loop in a circuit is zero. This law is essential for analyzing circuits and determining the distribution of voltage drops across individual components in a series or loop configuration.
