(a) What would have to be the self-inductance of a solenoid...

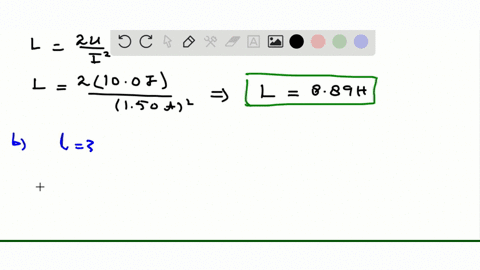

(a) What would have to be the self-inductance of a solenoid for it to store 10.0 $\mathrm{J}$ of energy when a 1.50 $\mathrm{A}$ current runs through it? (b) If this solenoid's cross-sectional diameter is $4.00 \mathrm{cm},$ and if you could wrap its coils to a density of 10 coils/mm, how long would the solenoid be? (See problem $36 .$) Is this a realistic length for ordinary laboratory use?

Key Concepts

Relationship Between Coil Density and Solenoid Dimensions

Coil density, defined as the number of turns per unit length, directly determines the total number of turns over the length of a solenoid. When designing an inductor for a specified inductance, using the turn density along with the solenoid's cross-sectional area allows one to calculate the required length to achieve the desired self-inductance. This interplay is essential for aligning the physical construction with electrical performance.

Solenoid Inductance

A solenoid is a coil of wire designed to produce a uniform magnetic field when carrying an electric current. Its self-inductance is calculated using the formula L = ?? n² A ?, where ?? is the permeability of free space, n is the number of turns per unit length, A is the cross-sectional area, and ? is the length of the solenoid. This relationship links the physical dimensions and turn density of the solenoid to its inductive properties.

Practicality in Laboratory Design

When calculating the required dimensions for inductors or solenoids, it is important to assess whether the resulting physical size is practical for laboratory use. Extremely long lengths or very high coil densities might be impractical due to space constraints, material limitations, or handling difficulties. Evaluating the design's real-world feasibility is a key aspect of experimental and applied electromagnetism.

Energy Storage in Inductors

In electrical circuits, inductors store energy in their magnetic fields. The stored energy is given by the formula E = ½ L I², where E is the energy, L is the inductance, and I is the current. This relationship is fundamental when designing circuits that require energy storage or energy transfer between magnetic and electrical forms.

Self-Inductance

Self-inductance is a property of a circuit or device (such as a solenoid) that quantifies its ability to induce an electromotive force in itself as the current changes. It is determined by the geometry and material properties of the inductor and plays a crucial role in determining how much magnetic energy can be stored at a given current.
