Question
A Wheatstone bridge of the type shown in Figure $28.25$ is used to make a precise measurement of the resistance of a wire connector. If $R_{3}=1.00 \mathrm{k} \Omega$ and the bridge is balanced by adjusting $R_{1}$ such that $R_{1}=2.50 R_{2}$, what is $R_{x} ?$
Step 1

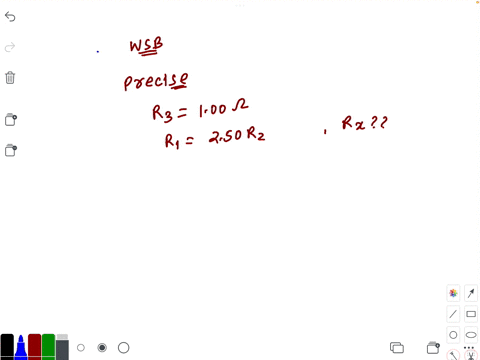

We know that $R_1 = 2.5R_2$ and $R_3 = 1.00 \, k\Omega$. We also know that the bridge is balanced, which means the ratio of the resistances is equal, i.e., $\frac{R_2}{R_x} = \frac{R_1}{R_3}$. Show more…
Show all steps
Your feedback will help us improve your experience
Vishal Gupta and 68 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
When an unknown resistance $R_{\mathrm{x}}$ is placed in a Wheatstone bridge, it is possible to balance the bridge by adjusting $R_{3}$ to be 2500$\Omega .$ What is $R_{\mathrm{x}}$ if $\frac{R_{2}}{R_{1}}=0.625$ $?$
To what value must you adjust $R_{3}$ to balance a Wheatstone bridge, if the unknown resistance $R_{\mathrm{x}}$ is $100 \Omega, R_{1}$ is $50.0 \Omega,$ and $R_{2}$ is 175$\Omega$ ?
