A Wire Loop and a Magnet A loop of wire is dropped and...

Name: Problem 27, Chapter 23: Physics
Uploaded: 2020-06-11T10:33:20-08:00
Duration: 2 min 16 s
Channel: Sanjeev Kumar

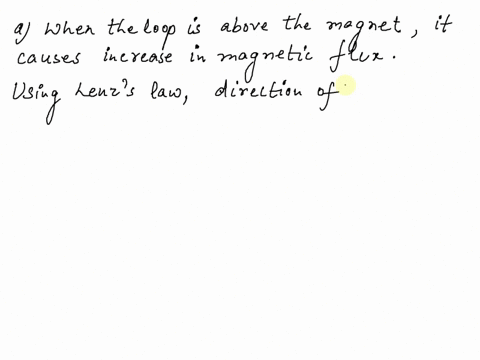

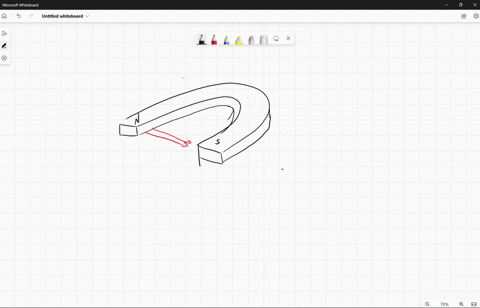

Description: A Wire Loop and a Magnet A loop of wire is dropped and allowed to fall between the poles of a horseshoe magnet, as shown in FIGURE 23-38. State whether the induced current in the loop is clockwise or counterclockwise when (a) the loop is above the magnet and (b) the loop is below the magnet.

A Wire Loop and a Magnet A loop of wire is dropped and allowed to fall between the poles of a horseshoe magnet, as shown in FIGURE 23-38. State whether the induced current in the loop is clockwise or counterclockwise when (a) the loop is above the magnet and (b) the loop is below the magnet.

Key Concepts

Electromagnetic Induction

Electromagnetic induction is the process by which an electric current is generated in a loop or coil due to a changing magnetic field. It explains how motion or variation in the magnetic environment around a conductor induces an electromotive force (EMF) in the conductor.

Faraday's Law

Faraday's Law quantifies electromagnetic induction by stating that the induced EMF in a circuit is directly proportional to the rate of change of magnetic flux through the circuit. It provides the mathematical foundation for calculating the magnitude of the induced voltage when the magnetic environment of the circuit changes.

Lenz's Law

Lenz's Law determines the direction of the induced current, stating that the induced current will flow in a direction that opposes the change in magnetic flux that produced it. This law is a manifestation of the conservation of energy, ensuring that the induced effects counteract the flux change.

Magnetic Flux

Magnetic flux is a measure of the quantity of magnetic field lines passing through a given area, such as a loop of wire. Changes in the amount of flux, due to either the movement of the loop or variations in the magnetic field strength, are what drive the process of electromagnetic induction.

Right-Hand Rule

The Right-Hand Rule is a mnemonic used to determine the direction of the induced current or magnetic field. By aligning the thumb, fingers, or palm in relation to the motion or field, one can infer the orientation of the induced current, making it an essential tool for visualizing electromagnetic phenomena.
