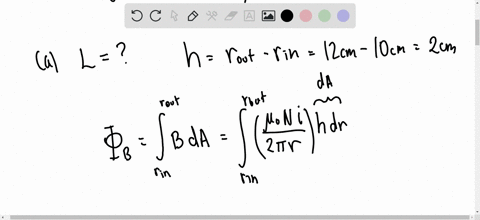

A wooden torodial core with a square cross section has an inner radius of $10 \mathrm{~cm}$ and an outer radius of $12 \mathrm{~cm}$. It is wound with one layer of wire (of diameter $1.0 \mathrm{~mm}$ and resistance per meter $0.020 \Omega / \mathrm{m}$ ). What are (a) the inductance and (b) the inductive time constant of the resulting toroid? Ignore the thickness of the insulation on the wire.

A wooden torodial core with a square cross section has an inner radius of $10 \mathrm{~cm}$ and an outer radius of $12 \mathrm{~cm}$. It is wound with one layer of wire (of diameter $1.0 \mathrm{~mm}$ and resistance per meter $0.020 \Omega / \mathrm{m}$ ). What are (a) the inductance and
(b) the inductive time constant of the resulting toroid? Ignore the thickness of the insulation on the wire.

Key Concepts

Toroidal Core Geometry

In electromagnetic applications, a toroidal core refers to a doughnut?shaped magnetic core which helps confine the magnetic field lines within the core material. The geometry, characterized by inner and outer radii and usually a specific cross-sectional shape, is important for calculating the magnetic field distribution and consequently the inductance of a coil wound around it. This concept is fundamental when designing inductors and transformers to ensure efficient magnetic coupling.

Inductance Calculation

Inductance is a measure of a coil's ability to store energy in its magnetic field. For toroidal coils, the inductance depends on factors like the number of turns, the cross-sectional area of the core, the mean radius of the toroid, and the permeability of the core material. Calculating inductance usually involves integrating the magnetic field along the path inside the toroid and accounting for the variation in radius, which influences the magnetic flux and inductive properties.

Winding Geometry and Wire Characteristics

The physical arrangement of the winding, including the number of layers and spacing defined by the wire diameter, significantly affects the inductance and the effective resistance of the coil. For a single layer of wire, the precise determination of turn count and spacing is critical, as both the inductive coupling and the resistive losses depend on these geometric details.

Inductive Time Constant in RL Circuits

The inductive time constant is a measure of how quickly current builds up or decays in an RL (resistor-inductor) circuit. It is defined as the ratio of the inductance L to the resistance R, and plays a crucial role in transient analysis of circuits. This time constant helps predict the response to changes in applied voltage and is key in applications like filters, transient suppression, and timing circuits.
