Additional Problems A cylindrical copper rod of length 1.50 m and radius 2.00 cm is insulated to

step 1 In this scenario, we have a cylindrical rod which is insulated on both sides and is between temp

Additional Problems A cylindrical copper rod of length 1.50...

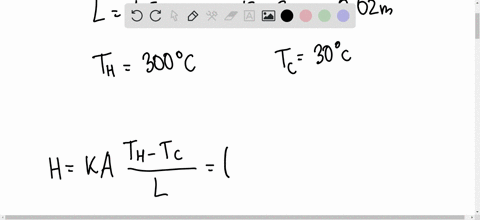

Additional Problems A cylindrical copper rod of length 1.50 $\mathrm{m}$ and radius 2.00 $\mathrm{cm}$ is insulated to prevent heat loss through its curved surface. One end is attached to a thermal reservoir fixed at $300^{\circ} \mathrm{C}$ ; the other is attached to a thermal reservoir fixed at $30.0^{\circ} \mathrm{C}$ . What is the rate at which entropy increases for the rod-reservoirs system?

Additional Problems
A cylindrical copper rod of length 1.50 $\mathrm{m}$ and radius 2.00 $\mathrm{cm}$ is insulated to prevent heat loss through its curved surface. One end is attached to a thermal reservoir fixed at $300^{\circ} \mathrm{C}$ ; the other is attached to a thermal reservoir fixed at $30.0^{\circ} \mathrm{C}$ . What is the rate at which entropy increases for the rod-reservoirs system?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Fourier's Law of Heat Conduction

Fourier's Law states that the heat transfer rate through a material is proportional to the negative of the temperature gradient and the area through which heat flows. It quantifies the conductive heat flux in a medium and is fundamental for calculating the rate at which thermal energy is transferred through objects like rods, taking into account the material's thermal conductivity, cross-sectional area, and the temperature difference over its length.

Entropy Generation in Irreversible Processes

When heat flows between objects at different temperatures, the process is irreversible, leading to an overall increase in entropy. The rate of entropy production for a system connected to thermal reservoirs can be determined by dividing the heat transfer rate by the absolute temperatures at the reservoirs. This concept highlights the second law of thermodynamics by demonstrating how irreversibilities in the process, such as the conduction pathway, contribute to the net increase in entropy of the combined system.
