After one bee left a flower with a positive charge, that bee...

After one bee left a flower with a positive charge, that bee flew away and another bee with the same amount of positive charge flew close to the plant. Which diagram in Fig. $\mathrm{P} 21.100$ (next page) best represents the electric field lines between the bee and the flower?

Key Concepts

Electric Charge

Electric charge is a fundamental property of matter that causes it to experience a force when placed in an electric field. Charges can be positive or negative, and like charges repel each other while opposite charges attract. This concept explains the behavior of charged objects, such as bees and flowers in this scenario.

Electric Field Lines

Electric field lines are a visual tool used to represent the direction and strength of an electric field around charged objects. They begin on positive charges and end on negative charges, or extend to infinity when only one type is present. In cases with like charges, these lines show the direction of the repulsive forces and indicate regions where the field strength is stronger or weaker.

Superposition Principle

The superposition principle states that the total electric field caused by multiple charges is the vector sum of the individual fields produced by each charge. This is essential for understanding field patterns in the region between two objects with similar charges, where the individual fields interact and may partially cancel or reinforce one another.

Representation of Repulsive Interactions

When two like charges are near each other, their similar electric fields repel one another. This results in electric field lines that emanate from each charge and curve away from the region between them, illustrating the net repulsive force. This concept is key to interpreting diagrams that represent the field configuration between similarly charged objects.

Transcript

00:01 Hello, everyone.

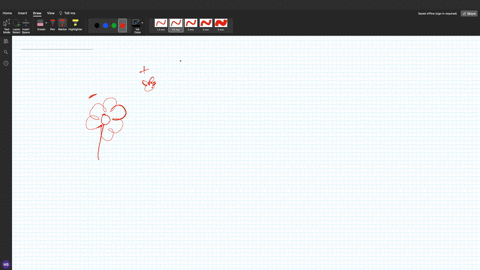

00:02 In this problem, we're asked to figure out what the electric field lines between a positively charged b and the positively charged flower are, or what did they look like, given four possible choices.

00:15 I don't really want to sketch the four possibilities here.

00:20 Instead, what i thought we'd do is we'd actually just figure out what should happen.

00:24 So then we were able to choose the right diagram.

00:28 So when you have a positive charge, the positive charge has electric field lines that are pointing radially outward.

00:36 So they do something like this.

00:40 And the arrows are pointing out.

00:42 So this is what the electric field lines near a positive charge look like.

00:47 Near a negative charge, the electric field lines are pointing radially inwards.

00:53 So they're pointing right into the charge.

00:59 And that's because the electric field lines direction is defined.

01:04 As the direction in which a positive charge would move.

01:08 So this is the electric field right near a negative charge.

01:11 This is the electric field near a positive chart.

01:14 And now let's look at some pairs, right? so if i have two positive charges, then a positive charge from in between these two guys would want to move away from both of them.

01:27 So here, actually, there would be like an unstable equilibrium position, but let's not talk about that.

01:34 Let's just kind of think about what happens if it's not.

01:36 Located in that equilibrium position.

01:38 So what happens then is that, you know, the field line cannot go from one positive charge to the other because that's not the way that the positive charge would want to move.

01:48 Instead, it would do something like this...
