Air at 900 kPa and 400 K enters a converging nozzle with a...

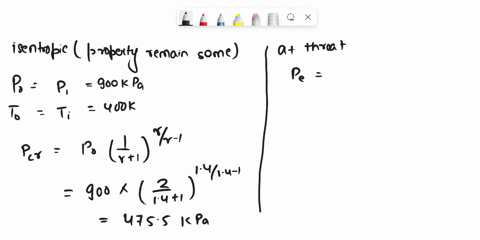

Air at $900 \mathrm{kPa}$ and $400 \mathrm{~K}$ enters a converging nozzle with a negligible velocity. The throat area of the nozzle is $10 \mathrm{~cm}^2$. Assuming isentropic flow, calculate and plot the exit pressure, the exit velocity, and the mass flow rate versus the back pressure $P_b$ for $0.9 \geq P_b \geq 0.1 \mathrm{MPa}$.

Key Concepts

Isentropic Flow

Isentropic flow refers to a process that is both adiabatic and reversible, meaning that no heat is transferred into or out of the fluid and that entropy remains constant throughout the flow. This assumption simplifies the analysis by allowing the use of specific relations between pressure, density, and temperature, which are pivotal in determining flow properties in compressible flows.

Choked Flow

Choked flow occurs in a converging nozzle when the fluid velocity reaches the local speed of sound at the throat. At this point, further decreasing the downstream (back) pressure does not significantly increase the mass flow rate because the sonic condition limits the flow. This concept is crucial for understanding the maximum achievable mass flow rate in compressible, adiabatic nozzle flows.

Mass Flow Rate in Compressible Flow

The mass flow rate in compressible flow through a nozzle is determined by the local fluid properties (pressure, temperature, density), the flow geometry, and the Mach number. Using the isentropic flow relations and the area of the nozzle throat, one can derive expressions that relate the mass flow rate to the upstream stagnation conditions and the critical (sonic) conditions at the throat, which are essential for quantifying flow performance.

Back Pressure Effects on Nozzle Performance

Back pressure is the pressure at the exit of the nozzle and plays a crucial role in determining the operating regime of the flow. Depending on its value relative to the critical pressure ratio, the flow may either be choked or remain subsonic, affecting the exit pressure, velocity, and mass flow rate. Understanding how variations in back pressure influence the nozzle performance is key in designing systems for controlled flow conditions.

Converging Nozzles

Converging nozzles are designed to accelerate fluid by decreasing the cross-sectional area, which results in an increase in velocity and a corresponding decrease in static pressure according to the conservation of energy. In compressible flow analysis, the geometry of a converging nozzle, particularly the throat area, is central to achieving desired flow characteristics, such as meeting the conditions for choked flow and maintaining stable, predictable performance.
