Air enters a turbine operating at steady state at 6 bar and 1100 K and expands isentropically t

step 1 To solve the execution we have D equals to D not into exponential minus of UD divided as small K

Air enters a turbine operating at steady state at 6 bar and...

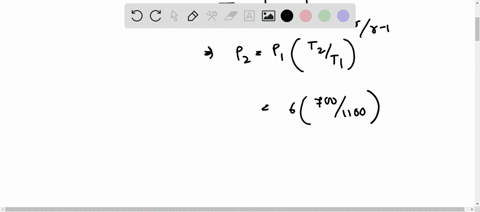

Air enters a turbine operating at steady state at 6 bar and $1100 \mathrm{~K}$ and expands isentropically to a state where the temperature is $700 \mathrm{~K}$. Employing the ideal gas model and ignoring kinetic and potential energy changes, determine the pressure at the exit, in bar, and the work, in $\mathrm{kJ}$ per $\mathrm{kg}$ of air flowing, using (a) data from Table A-22. (b) $I T$. (c) a constant specific heat ratio from Table A-20 at the mean temperature, $900 \mathrm{~K}$. (d) a constant specific heat ratio from Table A-20 at $300 \mathrm{~K}$.

Air enters a turbine operating at steady state at 6 bar and $1100 \mathrm{~K}$ and expands isentropically to a state where the temperature is $700 \mathrm{~K}$. Employing the ideal gas model and ignoring kinetic and potential energy changes, determine the pressure at the exit, in bar, and the work, in $\mathrm{kJ}$ per $\mathrm{kg}$ of air flowing, using
(a) data from Table A-22.
(b) $I T$.
(c) a constant specific heat ratio from Table A-20 at the mean temperature, $900 \mathrm{~K}$.
(d) a constant specific heat ratio from Table A-20 at $300 \mathrm{~K}$.

Key Concepts

Isentropic Process

An isentropic process is a reversible adiabatic process in which the entropy of the system remains constant. This concept is fundamental in thermodynamics, especially in the analysis of turbines and compressors, where the assumption of isentropic behavior simplifies the calculations of state properties between inlet and outlet conditions. It provides a basis for determining pressures, temperatures, and work outputs when kinetic and potential energy changes are negligible.

Ideal Gas Model

The ideal gas model assumes that the gas molecules do not interact and that the volume occupied by the molecules themselves is negligible compared to the container's volume. This approximation simplifies the analysis of thermodynamic processes because the relationships between pressure, volume, and temperature can be described by the ideal gas law. In turbine analysis, the ideal gas assumption allows the use of specific heats and other gas properties to compute work and state changes.

Steady-State Operation

Steady-state operation refers to a condition where the properties of the system do not change with time. In the context of turbines, this assumption implies that mass flow, energy transfer, and other state properties remain constant during the operation. This simplification is crucial for setting up conservation equations, making it easier to analyze and predict the performance of the turbine.

Thermodynamic Property Tables

Thermodynamic property tables provide empirical data for substances at various conditions. They are used to obtain necessary properties such as specific heats, specific gas constant values, or enthalpy values at different temperatures and pressures. In turbine performance analysis, these tables help in finding accurate values for state variables that are critical for calculating work output and exit conditions.

Constant Specific Heat Ratio

The specific heat ratio, often denoted as gamma (?), is the ratio of the specific heat at constant pressure to the specific heat at constant volume. Assuming a constant specific heat ratio simplifies the analysis of compressible flow problems by enabling the use of analytical expressions for expanding or compressing gases. However, the value of gamma can vary with temperature, so selecting an appropriate constant value based on a mean temperature or a specific reference temperature is an important consideration in accurately predicting turbine performance.
