Air enters the compressor of a gas-turbine plant at ambient...

Air enters the compressor of a gas-turbine plant at ambient conditions of $100 \mathrm{kPa}$ and $25^{\circ} \mathrm{C}$ with a low velocity and exits at $1 \mathrm{MPa}$ and $347^{\circ} \mathrm{C}$ with a velocity of $90 \mathrm{m} / \mathrm{s}$. The compressor is cooled at a rate of $1500 \mathrm{kJ} / \mathrm{min}$, and the power input to the compressor is $250 \mathrm{kW}$. Determine the mass flow rate of air through the compressor.

Key Concepts

Conservation of Energy for Open Systems

This principle states that in a steady-flow process, such as through a compressor, the energy entering the system, which includes the fluid's enthalpy and kinetic energy, plus any work input, must equal the sum of the energy leaving the system along with any heat transfer. It is crucial for analyzing devices like compressors where energy is added and removed simultaneously.

Mass Flow Rate Determination

The mass flow rate quantifies the mass passing through a system per unit time. In the context of compressor analysis, determining the mass flow rate involves applying the energy balance to relate the net energy change, including work input and heat removal, to the change in the specific enthalpy of the fluid.

Work and Heat Interactions in Compressors

Compressors function by adding work to the fluid to increase its pressure and temperature while often undergoing heat removal to manage thermal stresses and improve efficiency. Understanding how the mechanical work input and cooling (heat extraction) interact is essential for establishing the energy balance that governs the process.

Thermodynamic Property Changes

During compression, air undergoes significant changes in pressure, temperature, and potentially kinetic energy. Evaluating these property changes using the principles of thermodynamics (often applying ideal gas assumptions) helps in defining the energy changes and designing an appropriate calculation for the mass flow rate.

Transcript

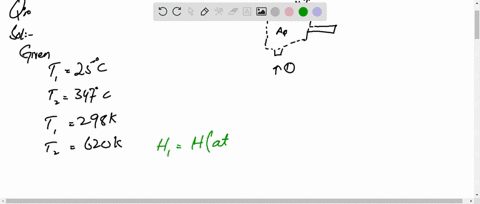

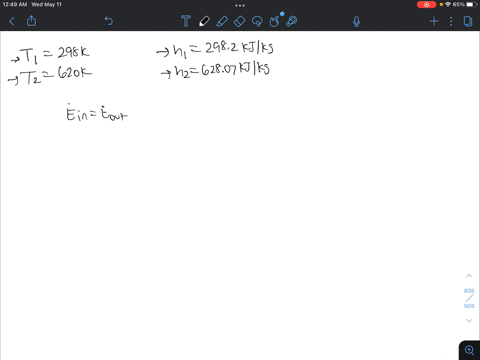

00:01 Okay, so for this question, we can apply the energy balance equation for this case, which is e .d .n is equal e .d .r.

00:07 Since the rate of internal energy change is zero.

00:11 Okay? so therefore, we know e .d .i.

00:13 Is the rate of energy that was transferred into a system.

00:16 E .d .l.

00:17 Is the rate of energy that was transferred out of the system.

00:19 If we expand it, we have w .d .n.

00:21 Plus m.

00:21 .h.

00:22 H .m.

00:22 Plus 1 .5 .b2 .2 .2 .e .e .e .e .e .e .e .2 .e .2.

00:24 Plus m .h .h.

00:26 Plus 1 .h .l.

00:26 Plus 1 .m .m .m .m .m .m .m .m .m.

00:28 It is the power inputs, which is the power input to the compressor.

00:36 And we know mdot is the mass flow rate we need to determine.

00:40 And h -in is the inlet enthalpy, and v wants the inlet velocity.

00:44 Kild out here is the heat loss rate, which can be find out at such a sentence here, because you were saying that the compressor is cool at a rate of blah, blah.

00:54 Okay, if we say it's cooling, that means the heat was losing, okay? and h -r here is the olive entropy, and v2 is the olive velocity...
