Air enters the evaporator section of a window air conditioner at 100 kPa and 27^∘ C with a volum

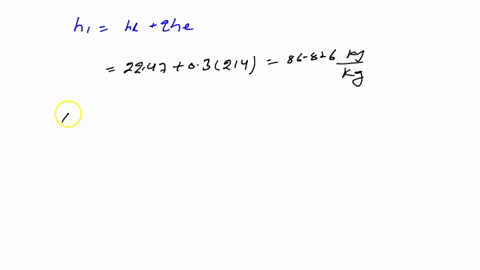

step 1 Friends, mass flow rate of air, mass flow rate of air will be row 1 v1, that is B1B1 dot upon RT

Air enters the evaporator section of a window air...

Air enters the evaporator section of a window air conditioner at $100 \mathrm{kPa}$ and $27^{\circ} \mathrm{C}$ with a volume flow rate of $6 \mathrm{~m}^{3} / \mathrm{min}$. Refrigerant-134a at $120 \mathrm{kPa}$ with a quality of 0.3 enters the evaporator at a rate of $2 \mathrm{~kg} / \mathrm{min}$ and leaves as saturated vapor at the same pressure. Determine the exit temperature of the air and the exergy destruction for this process, assuming $(a)$ the outer surfaces of the air conditioner are insulated and $(b)$ heat is transferred to the evaporator of the air conditioner from the surrounding medium at $32^{\circ} \mathrm{C}$ at a rate of $30 \mathrm{~kJ} / \mathrm{min}$.

Key Concepts

Thermodynamic Properties of Fluids

Thermodynamic properties such as temperature, pressure, volume, and quality are fundamental in characterizing the state of fluids like air and refrigerants. These properties determine fluid behavior during processes such as compression, heat transfer, and phase changes. Understanding these parameters is essential for analyzing system performance in devices like air conditioners, where precise control of these properties ensures efficient operation.

Exergy Analysis and Irreversibilities

Exergy analysis is a thermodynamic approach that quantifies the maximum useful work obtainable from a system as it interacts with its surroundings, taking into account the quality of energy. It is used to assess the performance of processes by accounting for energy losses due to irreversibility. Exergy destruction indicates the loss of potential work due to non-ideal effects, such as friction or non-optimal heat transfer, providing insights into the thermodynamic efficiency of the system.

Energy Balance in Control Volumes

Energy balance involves applying the first law of thermodynamics to a control volume where mass and energy enter and exit. In the context of refrigeration and air conditioning, it is used to equate the heat transfer, work interactions, and changes in internal energy or enthalpy of the working fluids such as air and refrigerant. This analysis is essential for determining outlet conditions like air exit temperature or refrigerant state changes.

Refrigerant Quality and Phase Change

Refrigerant quality is a measure of the proportion of vapor in a liquid-vapor mixture, expressing the degree of phase change that has occurred. It is an important parameter in describing the state of the refrigerant within the evaporator. A change in quality indicates the extent of evaporation, and understanding this helps in analyzing the energy absorbed during the phase change process, which is central to the performance of refrigeration cycles.

Evaporator in Refrigeration Systems

An evaporator is a key component in refrigeration and air-conditioning systems where a working fluid (refrigerant) absorbs heat from a surrounding medium (such as air) to evaporate. It functions as a heat exchanger, transferring energy from the air to the refrigerant, thereby cooling the air while the refrigerant undergoes a phase change from liquid to vapor. This process is crucial for achieving desired cooling effects in systems like window air conditioners.
