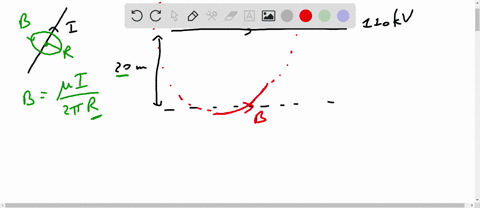

Although the evidence is weak, there has been concern in recent years over possible health effects from the magnetic fields generated by transmission lines. A typical high-voltage transmission line is $20 \mathrm{m}$ off the ground and carries a current of 200 A. Estimate the magnetic field strength on the ground underneath such a line. What percentage of the earth's magnetic field does this represent?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Biot-Savart Law

The Biot-Savart Law is a fundamental principle in electromagnetism that describes how moving electric charges produce magnetic fields. It provides the mathematical framework for calculating the magnetic field generated at a point in space by a small segment of a current-carrying conductor. This law underpins the derivation of the magnetic field produced by common configurations, such as a long straight conductor.

Magnetic Field of a Long Straight Conductor

For a long, straight current-carrying wire, the magnetic field at a distance r from the wire is calculated using the formula B = (??I)/(2?r), where ?? is the permeability of free space, I is the current flowing through the wire, and r is the radial distance from the wire. This concept is critical for estimating the magnetic influence of power transmission lines and understanding how magnetic field strength diminishes with distance.

Earth's Magnetic Field

The Earth's magnetic field, typically on the order of a few tens of microteslas, is the result of the dynamo action in the planet’s liquid outer core. It serves as a baseline against which other magnetic fields, such as those produced by human-made sources like transmission lines, are compared. This comparison helps in assessing potential relative impacts on human health and the environment.
