An 8.0 m by 12 m house is built on a concrete slab 23 cm thick. Find the heat-loss rate throu

step 1 So the question was asking us, what is the heat loss rate through the floor? Okay? So we know th

An 8.0 m by 12 m house is built on a concrete slab 23 cm...

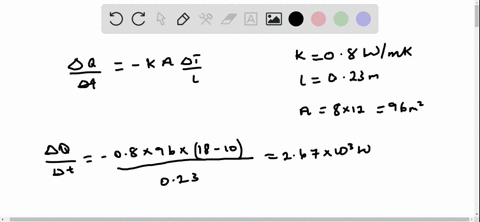

An $8.0 \mathrm{~m}$ by $12 \mathrm{~m}$ house is built on a concrete slab $23 \mathrm{~cm}$ thick. Find the heat-loss rate through the floor if the interior is at $20^{\circ} \mathrm{C}$ while the ground is at $10^{\circ} \mathrm{C}$.

Key Concepts

Geometric Considerations in Conduction

The geometry of the conducting material, specifically its cross-sectional area and thickness, plays a critical role in determining the rate of heat flow. A larger area facilitates more heat transfer, while greater thickness increases the thermal resistance, thereby reducing the rate of heat conduction.

Temperature Difference and Heat Flux

The temperature difference across a material creates a driving force for heat transfer. A larger difference results in a higher heat flux (i.e., a greater amount of heat transferred per unit time) when all other factors such as material properties and geometry are constant.

Thermal Conductivity

Thermal conductivity is a material property that indicates the ability of a substance to conduct heat. It is used in Fourier's Law as the proportionality constant which, when combined with the temperature gradient and cross-sectional area, determines the rate of heat flow through the material.

Fourier's Law of Heat Conduction

Fourier's Law is the fundamental principle governing steady-state heat conduction. It states that the rate of heat transfer through a material is proportional to the negative gradient of temperatures and the area through which the heat flows. This law forms the basis for calculating how much heat is conducted through materials given a temperature difference.
