An absolute pressure gauge attached to a steel cylinder shows 135 kPa. We want to attach a manom

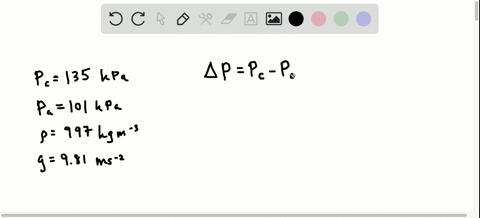

step 1 So we want to find out what fluid level difference we should expect in a Manama ter when we atta

An absolute pressure gauge attached to a steel cylinder...

An absolute pressure gauge attached to a steel cylinder shows $135 \mathrm{kPa}$. We want to attach a manometer using liquid water on a day that $P_{\text {atm }}=101$ $\mathrm{kPa}$. How high a fluid level difference must we plan for?

Key Concepts

Hydrostatic Pressure

This concept refers to the pressure exerted by a fluid at equilibrium due to the force of gravity. The pressure difference corresponding to a fluid column is calculated using the relation P = ?gh, where ? is the fluid's density, g is the acceleration due to gravity, and h is the height of the fluid column. This is essential for translating pressure differences into height differences in measurements involving fluids.

Absolute Pressure vs Gauge Pressure

Absolute pressure is the total pressure measured relative to a complete vacuum, while gauge pressure is measured relative to the ambient atmospheric pressure. Understanding the difference is crucial, especially when calculating pressure differences in systems where atmospheric pressure must be accounted for in the measurement.

Manometer Principles

A manometer is an instrument that measures pressure by observing the displacement of a fluid column. It operates based on the balance between the pressure exerted by the fluid column and the pressure difference being measured, using the hydrostatic equation. This principle is widely used in converting pressure differences into measurable height differences.

Dimensional Analysis and Unit Conversion

Ensuring consistency of units, such as converting pressures to Pascals, densities in kg/m³, and acceleration in m/s², is critical for accurate calculations. Dimensional analysis helps verify that equations like P = ?gh are applied correctly, highlighting the importance of unit management in solving physics problems.
