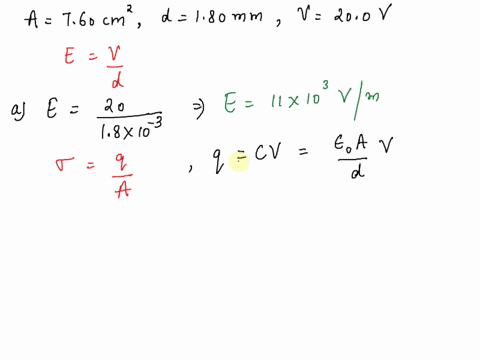

An air-filled capacitor consists of two parallel plates, each with an area of 7.60 $\mathrm{cm}^{2}$ , separated by a distance of $1.80 \mathrm{mm} .$ A $20.0-\mathrm{V}$ potential difference is applied to these plates. Calculate (a) the electric field between the plates, (b) the surface charge density, (c) the capacitance, and (d) the charge on each plate.

Key Concepts

Parallel Plate Capacitor

A parallel plate capacitor consists of two conductive plates separated by a small distance with a dielectric (which can be air) between them. This configuration is fundamental in understanding how electrical energy is stored in an electric field. The uniform electric field created between the plates and the dependence of stored charge on the area of the plates and the separation distance are central to capacitor behavior.

Electric Field in a Capacitor

The electric field between the plates of a capacitor is a measure of the force per unit charge within the space between the plates. For a parallel plate capacitor, the field is uniform and can be calculated by dividing the potential difference applied across the plates by the distance between them. This concept is critical in understanding how voltage influences the behavior of charges in capacitive setups.

Capacitance Calculation

Capacitance is a measure of a capacitor's ability to store electrical energy per unit voltage. In a parallel plate capacitor, capacitance depends on the area of the plates, the separation distance between them, and the permittivity of the dielectric material between the plates. The formula C = ??A/d encapsulates these relationships, making it possible to predict how changing the physical dimensions or material properties affects the charge storage capability.

Surface Charge Density

Surface charge density refers to the amount of electric charge per unit area on the surface of a conductor. In the context of a capacitor, it is determined by dividing the total charge on one plate by the plate’s area. This concept links the microscopic distribution of charge with macroscopic properties like the electric field, since the field at the surface of a conductor is directly related to the surface charge density.

Charge Stored on a Capacitor

The charge stored on a capacitor is directly related to its capacitance and the voltage applied across it, as described by the relation Q = CV. This relationship underscores the point that a capacitor's ability to store charge increases with higher capacitance or applied voltage. Understanding this relationship is key when analyzing or designing circuits involving capacitors.
