An ammeter of range $5 \mathrm{~A}$ is to be converted into an voltmer of range $10 \mathrm{~V}$. If the resistance of ammeter be $0.1$, then what resistance should be connected in series with it ?(A) $4.9 \Omega$(B) $2.1 \Omega$(C) $1.1 \Omega$(D) $1.9 \Omega$
Step 1
Step 1: We know that the resistance to be connected in series can be calculated using the formula $R = \frac{V}{I} - G$, where $V$ is the voltage, $I$ is the current, and $G$ is the resistance of the ammeter. Show more…
Show all steps
Your feedback will help us improve your experience
Narayan Hari and 80 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
An ammeter of resistance $0.2 \Omega$ reading upto $10 \mathrm{~mA}$ is to be used to read upto $1 \mathrm{~V}$ potential difference. We have to connect a. $99.8 \Omega$ resistance in series b $99.8 \Omega$ resistance in parallel c. $0.1 \Omega$ resistance in parallel d. $0.1 \Omega$ resistance in series

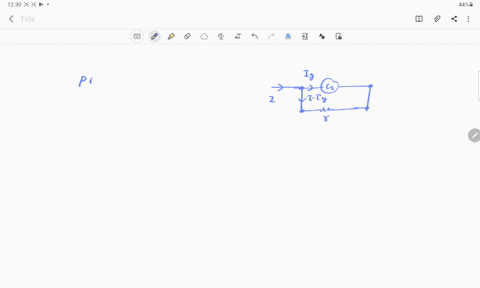

An ammeter reads up to $1 \mathrm{~A}$. Its internal resistance is $0.81 \Omega$. To increase the range to $10 \mathrm{~A}$, the value of the required shunt is (A) $0.03 \Omega$ (B) $0.3 \Omega$ (C) $0.9 \Omega$ (D) $0.09 \Omega$
When an ammeter of negligible internal resistance is inserted in series with circuit it reads $1 \mathrm{~A}$. When the voltmeter of very large resistance is connected across $R_{1}$ it reads $3 \mathrm{~V}$. But when the points $A$ and $B$ are short circuited by a conducting wire then the voltmeter measures $10.5 \mathrm{~V}$ across the battery. The internal resistance of the battery is equal to: (a) $\frac{3}{7} \Omega$ (b) $5 \Omega$ (c) $3 \Omega$ (d) none of these
