Question

An application of Kirchhoff's Rules to the circuit shown results in the following system of equations: $$\left\{\begin{array}{l}I_{1} =I_{3}+I_{2} \\24-6 I_{1}-3 I_{3} =0 \\12+24-6 I_{1}-6 I_{2} =0\end{array}\right.$$ Find the currents $I_{1}, I_{2},$ and $I_{3}$.

Name: Problem 84, Chapter 8: College Algebra
Uploaded: 2021-09-30T19:10:43-08:00
Duration: 2 min 20 s
Channel: Reinhart Du Plessis
Description: An application of Kirchhoff's Rules to the circuit shown results in the following system of equations: { I1 =I3+I2 24-6 I1-3 I3 =0 12+24-6 I1-6 I2 =0 . Find the currents I1, I2, and I3.

   An application of Kirchhoff's Rules to the circuit shown results in the following system of equations:
$$\left\{\begin{array}{l}I_{1} =I_{3}+I_{2} \\24-6 I_{1}-3 I_{3} =0 \\12+24-6 I_{1}-6 I_{2} =0\end{array}\right.$$
Find the currents $I_{1}, I_{2},$ and $I_{3}$.

College Algebra

Michael Sullivan 9th Edition

Chapter 8, Problem 84

Instant Answer

Solved by Expert Reinhart Du Plessis

09/30/2021

Step 1

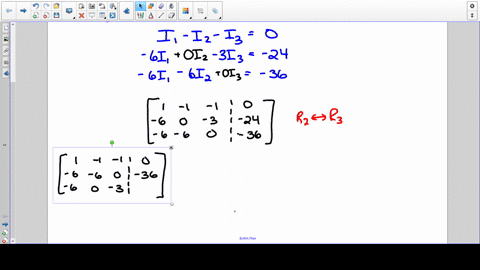

This gives us: \begin{align*} I_{1} - I_{2} - I_{3} &= 0, \\ -6I_{1} - 3I_{3} &= -24, \\ -6I_{1} - 6I_{2} &= -36. \end{align*} Show more…
