An electric field of magnitude 4.00 ×102 N / C^4.00 ×10^2 N / C exists at all points just ou

step 1 This problem covers the concept of the goss law and from the goss law the electric field magnitu

An electric field of magnitude 4.00 ×102 N / C^4.00 ×10^2...

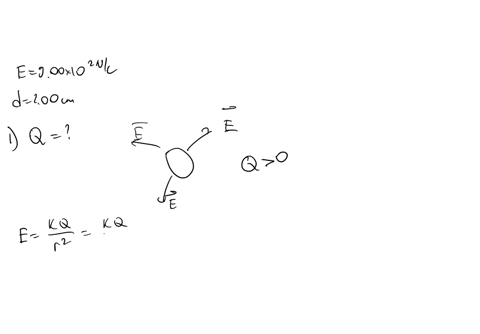

An electric field of magnitude $4.00 \times 102 \mathrm{~N} / \mathrm{C}^{4.00 \times 10^{2} \mathrm{~N} / \mathrm{C} \text { exists at all }}$ points just outside the surface of a 2.00-cm-diameter steel ball bearing. Assuming the ball bearing is in electrostatic equilibrium, (a) what is the total charge on the ball? (b) What is the surface charge density on the ball? $\underline{\text { Example } 16-8}$

Key Concepts

Gauss's Law

Gauss's Law states that the net electric flux through any closed surface is equal to the total charge enclosed divided by the permittivity of free space (??). This concept is pivotal in problems with high symmetry, such as spherical distributions, as it simplifies the calculation of electric fields and enclosed charges.

Conductors in Electrostatic Equilibrium

In a conductor at electrostatic equilibrium, any excess charge resides on the surface, and the electric field inside the conductor is zero. This property ensures that the external electric field is solely determined by the surface charge distribution, and it also leads to the field being perpendicular to the surface at every point.

Surface Charge Density

Surface charge density is defined as the amount of charge per unit area on the surface of a conductor. It is a key parameter in determining the local intensity of the electric field near the surface, as well as in relating the total charge on the conductor to its geometrical dimensions.

Spherical Symmetry in Electric Fields

For a spherically symmetric charge distribution, the electric field outside the sphere is equivalent to that produced by a point charge located at the center. This symmetry allows for straightforward application of Gauss's Law to determine both the electric field and the total charge, by using a Gaussian surface that is also spherical.
