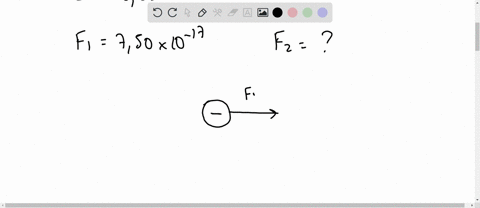

An electron is a subatomic particle $\left(m=9.11 \times 10^{-31} \mathrm{kg}\right)$ that is subject to electric forces. An electron moving in the $+x$ direction accelerates from an initial velocity of $+5.40 \times 10^{5} \mathrm{m} / \mathrm{s}$ to a final velocity of $+2.10 \times 10^{6} \mathrm{m} / \mathrm{s}$ while traveling a distance of 0.038 $\mathrm{m}$ . The electron's acceleration is due to two electric forces parallel to the $x$ axis: $\overrightarrow{\mathbf{F}}_{\mathbf{1}}=+7.50 \times 10^{-17} \mathrm{N},$ and $\overrightarrow{\mathbf{F}}_{2}$ which points in the $-x$ direction. Find the magnitudes of $(a)$ the net force acting on the electron and $\quad(b)$ the electric force $\vec{F}_{2}$ .

Get the answer to your homework problem.

Try Numerade free for 7 days

Like

Report

$+4.94 \times 10^{-17} N$$2.56 \times 10^{-17} N$

Physics 101 Mechanics

Chapter 4

Forces and Newton’s Laws of Motion

Newton's Laws of Motion

Applying Newton's Laws

Cornell University

University of Michigan - Ann Arbor

Simon Fraser University

University of Winnipeg

Lectures

03:28

Newton's Laws of Motion are three physical laws that, laid the foundation for classical mechanics. They describe the relationship between a body and the forces acting upon it, and its motion in response to those forces. These three laws have been expressed in several ways, over nearly three centuries, and can be summarised as follows: In his 1687 "Philosophiæ Naturalis Principia Mathematica" ("Mathematical Principles of Natural Philosophy"), Isaac Newton set out three laws of motion. The first law defines the force F, the second law defines the mass m, and the third law defines the acceleration a. The first law states that if the net force acting upon a body is zero, its velocity will not change; the second law states that the acceleration of a body is proportional to the net force acting upon it, and the third law states that for every action there is an equal and opposite reaction.

03:43

In physics, dynamics is the branch of physics concerned with the study of forces and their effect on matter, commonly in the context of motion. In everyday usage, "dynamics" usually refers to a set of laws that describe the motion of bodies under the action of a system of forces. The motion of a body is described by its position and its velocity as the time value varies. The science of dynamics can be subdivided into, Dynamics of a rigid body, which deals with the motion of a rigid body in the frame of reference where it is considered to be a rigid body. Dynamics of a continuum, which deals with the motion of a continuous system, in the frame of reference where the system is considered to be a continuum.

05:25

An electron is a subatomic…

03:36

03:20

An electron is acted upon …

04:58

At time $t_{1}$, an electr…

06:22

An electron $\left(\mathrm…

05:35

At time $t_{1},$ an electr…

03:06

03:07

02:42

An electron having an init…

02:02

If two electrons are each …

04:22

An electron is projected h…

03:27

An electron of mass $9.11 …

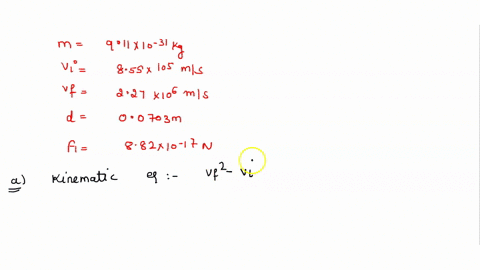

we begin this question by calculating what is the Net force that acts on the electron and how can you do that? Well, remember that from Newton's second blow, the net force is given by the massed finds declaration. We know the mass of the electron, the mask off letter. That is the question 9.7. I'm stand to minus 30 world kilograms. Now we have to get her mind. What is the exploration and how can we do that? We'll take a look at the data, so the record goes from 5.4 times 10 to 15 meters per second, 22.1 time step into six meters per second. Then the variation in the velocity is 2.1 time stamped realistic minus 5.4. I'm Stan, this is and this happens while the electron was traveling a distance off 0.0 38 meters. So all we knew is no Cassie Anelka. The stents. How can you know what is exploration? We can use your Charlie's equation, which tells us that the final velocity squared is because the initial they lost its were plus two kinds declaration times. It's the displacement. Then we have the following the final velocity Q 0.1 time standing six square is equal to the initial velocity 5.4 I understand square plus true times acceleration times 0.0 38 Then we have to solve this equation for acceleration. In order to do that, we have first to do some things. So we sent this term to the other side to get the following. So we get true 0.1 time stamped with six. We're minors. 5.4 time Stand for the fifth square. Is it close to two times acceleration times 0.0 38. Damn, we had this. We can do the following send both be true on the 0.0 30 exit on the other side. So we got true 0.1 time stamped into six squared minus 5.4. I'm standing Feud queer divided by true kind 0.0 38 Is it close to the acceleration men? They have given this an acceleration off approximately 5.42 time Stand to the 13 meters per second square. So these these declaration now we can go back in complex in that force when that force is. Then it costs 29.11 kind. Stand to minus 31 times five. 40 to understand the 13. Then that force is approximately 4.94. Understand? To minus 17 mu Tums. And this is the answer for the first item. Now, on second. Like them, we have to calculate what is the strength off the force at two. And how can we do that? Well, note that the force that one swinging to the right and the force at two is pointing to the left. Sure, in that force is equal. Stoop at one minus two. The Net Force. We know it's 4.94 Understand? To my 17 the force s one we know a 7.5. Thanks then to the miners. 17. Now, I only have to do to complete the value off, too. We can do that. Like sending his current to the side. His term with the site. So we got to is equal to seven twice. Understand? To my 17 minus 4.9. Before time Stan to mind. 70. And these gives this force too equals true. 2.6. I'm Stan to minus 17 new tops on this. The answer off the second night
