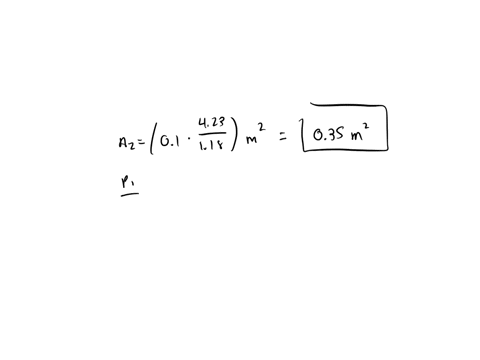

An ideal gas flows isentropically through a convergingdiverging nozzle. At a section in the converging portion of the nozzle. $A_{1}=0.1 \mathrm{m}^{2}, p_{1}=600 \mathrm{kPa}(\mathrm{abs}), T_{1}=20^{\circ} \mathrm{C},$ and $\mathrm{M} \varepsilon_{1}=0.6 .$ For section (2) in the diverging part of the nozzle, determine $A_{2}, p_{2},$ and $T_{2}$ if $\mathrm{Ma}_{2}=3.0$ and the gas is air.

An ideal gas flows isentropically through a convergingdiverging nozzle. At a section in the converging portion of the nozzle. $A_{1}=0.1 \mathrm{m}^{2}, p_{1}=600 \mathrm{kPa}(\mathrm{abs}), T_{1}=20^{\circ} \mathrm{C},$ and $\mathrm{M} \varepsilon_{1}=0.6 .$ For
section (2) in the diverging part of the nozzle, determine $A_{2}, p_{2},$ and $T_{2}$ if $\mathrm{Ma}_{2}=3.0$ and the gas is air.

Key Concepts

Isentropic Flow

An isentropic process in fluid dynamics is one in which the fluid undergoes a reversible, adiabatic change with no heat transfer and no change in entropy. This concept is essential when analyzing compressible flows through nozzles because it allows the use of simplified relations between pressure, temperature, and density, facilitating calculations under idealized conditions.

Mach Number

The Mach number is the ratio of the flow velocity to the local speed of sound. It is a critical parameter in compressible flow as it indicates the regime of the flow (subsonic, sonic, or supersonic) and helps determine the behavior of the fluid. In nozzle flow problems, changes in the Mach number are directly tied to variations in area and flow properties, making it a fundamental concept.

Area-Mach Number Relationship

This relationship connects the cross-sectional area of a nozzle to the Mach number for a given isentropic, compressible flow. It is derived from the conservation of mass and energy, coupled with the ideal gas law. The area-Mach number relation is used to predict how changes in geometry affect the flow speed and to determine the necessary nozzle dimensions to achieve desired flow velocities.

Ideal Gas Behavior

The ideal gas law relates pressure, volume, and temperature of a gas through a constant specific heat ratio. In many engineering problems, gases like air are assumed to behave ideally, simplifying the analysis of flow properties. This assumption allows for the use of standardized isentropic relations and equations that connect thermodynamic properties during the flow.

Converging-Diverging Nozzle

A converging-diverging nozzle is a specialized geometry used to accelerate gases from subsonic to supersonic speeds. The converging section accelerates the flow to sonic conditions at the throat, while the diverging section further accelerates the flow to supersonic speeds. Understanding the behavior of gases in such nozzles is crucial for designing efficient propulsion and high-speed flow systems.
