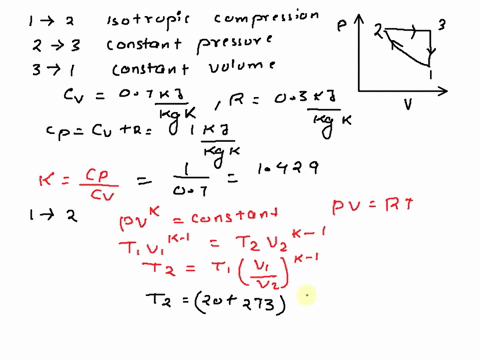

An ideal gas is contained in a piston-cylinder device and undergoes a power cycle as follows: $1-2$ isentropic compression from an initial temperature $T_{1}=20^{\circ} \mathrm{C}$ with a compression ratio $r=5$ $2-3$ constant-pressure heat addition $3-1$ constant-volume heat rejection The gas has constant specific heats with $c_{v}=0.7 \mathrm{~kJ} / \mathrm{kg} \cdot \mathrm{K}$ and $R=0.3 \mathrm{~kJ} / \mathrm{kg} \cdot \mathrm{K}$ (a) Sketch the $P-U$ and $T-s$ diagrams for the cycle. (b) Determine the heat and work interactions for each process, in $\mathrm{kJ} / \mathrm{kg}$. (c) Determine the cycle thermal efficiency. (d) Obtain the expression for the cycle thermal efficiency as a function of the compression ratio $r$ and ratio of specific heats $k$.

An ideal gas is contained in a piston-cylinder device and undergoes a power cycle as follows: $1-2$ isentropic compression from an initial temperature $T_{1}=20^{\circ} \mathrm{C}$ with a compression ratio $r=5$ $2-3$ constant-pressure heat addition $3-1$ constant-volume heat rejection The gas has constant specific heats with $c_{v}=0.7 \mathrm{~kJ} / \mathrm{kg} \cdot \mathrm{K}$ and $R=0.3 \mathrm{~kJ} / \mathrm{kg} \cdot \mathrm{K}$
(a) Sketch the $P-U$ and $T-s$ diagrams for the cycle.
(b) Determine the heat and work interactions for each process, in $\mathrm{kJ} / \mathrm{kg}$.
(c) Determine the cycle thermal efficiency.
(d) Obtain the expression for the cycle thermal efficiency as a function of the compression ratio $r$ and ratio of specific heats $k$.

Key Concepts

Graphical Representations in Thermodynamics (P-U and T-s Diagrams)

Graphical representations such as Pressure–Internal Energy (P-U) diagrams and Temperature–Entropy (T-s) diagrams are vital for visualizing and analyzing thermodynamic cycles. These diagrams illustrate the state changes and the process paths within the cycle, facilitating a better understanding of the transformations occurring between states, as well as the relationships among pressure, temperature, internal energy, and entropy.

Thermal Efficiency of Heat Cycles

Thermal efficiency is a measure of a cycle's performance and is defined as the ratio of net work output to the heat input. This concept helps in determining how effectively a thermodynamic cycle converts heat into work, and it is directly influenced by the individual heat additions and rejections in the cycle. Understanding the factors that affect efficiency is essential when evaluating and optimizing energy systems.

Energy Analysis in Thermodynamic Cycles

Energy analysis in cycles involves applying the first law of thermodynamics to determine the balance between heat transfer and work for each process. This analysis is critical for calculating the work interactions and heat transfers in each stage of the cycle, ultimately leading to an evaluation of the net work and the efficiency of the cycle.

Constant-Volume Process

In a constant-volume process, also known as an isochoric process, the volume remains unchanged while the pressure and temperature vary. The heat transfer in such processes directly affects the internal energy because no boundary work is performed. This principle is key to analyzing processes where thermal energy is added or removed without doing mechanical work.

Constant-Pressure Process

A constant-pressure process, or isobaric process, is one in which the pressure remains fixed while the other state variables, such as temperature and volume, change. This type of process is common during heat addition in cycles. Its analysis involves calculating changes in enthalpy and understanding the work done by or on the system under unvarying pressure conditions.

Isentropic Process

An isentropic process is one in which the entropy remains constant, meaning that the process is both adiabatic and reversible. This concept is crucial when analyzing compression or expansion in thermodynamic cycles, as it allows for the use of specific relations between pressure, volume, and temperature. Understanding isentropic processes helps in determining state properties during transformations without heat exchange.

Ideal Gas with Constant Specific Heats

The ideal gas assumption, combined with constant specific heats, simplifies the analysis of thermodynamic cycles by using linear relationships between temperature, internal energy, and enthalpy. This concept allows for straightforward calculations of energy transfers during various processes without accounting for variations in specific heats with temperature.
