An inductor (L=400 . mH), a capacitor (C=4.43 μF) and a resistor (R=500 . Ω) are connected in se

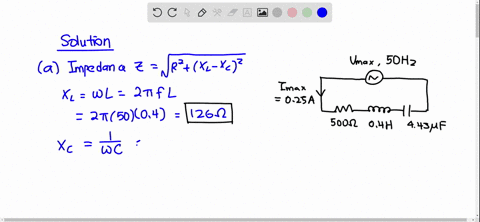

step 1 So for a part of A, we know that the inductive reactance is going to be equaling 2 pi times the

An inductor (L=400 . mH), a capacitor (C=4.43 μF) and a...

An inductor $(L=400 . \mathrm{mH}),$ a capacitor $(C=4.43 \mu \mathrm{F})$ and a resistor $(R=500 . \Omega)$ are connected in series. A 50.0 - Hz AC generator connected in series to these elements produces a maximum current of 250 mA in the circuit. (a) Calculate the required maximum voltage $\Delta V_{\max }$ (b) Determine the phase angle by which the current leads or lags the applied voltage.

Key Concepts

Impedance

Impedance is the total opposition that a circuit presents to the flow of alternating current (AC) and is a combination of resistance and reactance. It is expressed as a complex quantity, where the resistance accounts for energy dissipation, and the reactance (the difference between inductive and capacitive effects) accounts for energy storage, determining the magnitude and phase relationship between voltage and current.

Reactance

Reactance is the component of impedance that arises from the inductors and capacitors in an AC circuit. Inductive reactance (XL = 2?fL) increases with frequency, causing the current to lag the voltage, while capacitive reactance (XC = 1/(2?fC)) decreases with frequency, causing the current to lead the voltage. The balance between these two defines the net reactance in the circuit.

Series RLC Circuit

A series RLC circuit is one in which a resistor, an inductor, and a capacitor are connected in a single loop with an AC source. This configuration is pivotal in understanding how energy is stored, exchanged, and dissipated within the circuit, and it serves as a fundamental model for transient and steady-state responses in AC circuits.

Phase Angle

The phase angle in an AC circuit quantifies the difference in phase between the applied voltage and the resulting current. It is determined by the ratio of the net reactance (inductive reactance minus capacitive reactance) to resistance, typically through an arctan function, and indicates whether the current leads or lags the voltage based on whether the circuit is more capacitive or inductive.
