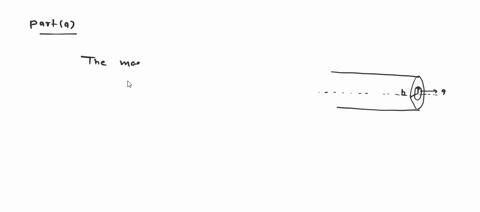

An infinitely long, thick cylindrical shell of inner radius $a$ and outer radius $b$ carries a current $I$ uniformly distributed across a cross section of the shell. (a) On a sketch of a cross section of the shell, draw some magnetic field lines. The current flows out of the page. Consider all regions $(r \leq a, a \leq r \leq b, b \leq r) .$ (b) Find the magnetic field for $r>b$.

Key Concepts

Magnetic Field Lines

Magnetic field lines represent the direction and relative magnitude of the magnetic field in space. Drawing these lines around current-carrying conductors, using rules such as the right-hand rule, helps visualize the magnetic field structure and understand how the field changes in different spatial regions.

Right-Hand Rule

The right-hand rule is a mnemonic for determining the direction of the magnetic field relative to the direction of the current. When the thumb points in the direction of the current, the fingers curl in the direction of the magnetic field lines, which is particularly useful in understanding the field orientation in circular or cylindrical systems.

Current Density and Enclosed Current

In problems involving uniformly distributed current, current density is used to determine how current is spread over a given area. Calculating the enclosed current by integrating the current density over the area inside an Amperian loop is crucial for applying Ampere's Law correctly, especially when the loop is within or outside the current-carrying region.

Ampere's Law

Ampere's Law relates the magnetic field in space to the current producing it, stating that the line integral of the magnetic field around a closed loop is equal to ?? times the total current enclosed by that loop. This principle is essential for analyzing and calculating the magnetic fields in systems with high symmetry, such as cylindrical current distributions.

Cylindrical Symmetry

Cylindrical symmetry refers to systems where the physical properties are invariant under rotations about the cylinder’s axis. This symmetry greatly simplifies the analysis of magnetic fields because it implies that the magnetic field depends only on the distance from the axis and has a predictable direction, allowing one to choose appropriate Amperian loops for applying Ampere's Law.
