An insulated mixing chamber as shown in Fig. P6.94 receives...

An insulated mixing chamber as shown in Fig. P6.94 receives 4 lbm/s of $R-134 a$ at $150 \mathrm{lbf} /$ in $^{2}$, $220 \mathrm{F}$ in a line with low velocity. Another line with $\mathrm{R}-134 \mathrm{a}$ of saturated liquid at $130 \mathrm{F}$ flows through a valve to the mixing chamber at $150 \mathrm{lbf}/\mathrm{in}$ $^{2}$ after the valve. The exit flow is saturated vapor at $150 \mathrm{lbf} / \mathrm{in}^{2}$ flowing at $60 \mathrm{ft} / \mathrm{s}$. Find the mass flow rate for the second line.

Key Concepts

Fluid Flow Analysis

Analyzing the flow characteristics, such as velocity and density relations, helps in linking the mass flow rate with dynamic parameters. In problems involving mixing, fluid velocity and cross-sectional area can be used to calculate mass flux, which then integrates with properties like density or enthalpy. This analysis is important to ensure that velocity-related restrictions are met, particularly when dealing with high-speed flows.

Phase Change and Saturation in Thermodynamic Systems

Understanding phase change is critical in systems where fluids change state, such as from saturated liquid to saturated vapor. This concept involves the use of thermodynamic property data to relate temperatures and pressures to specific enthalpies and qualities. In mixing scenarios, recognizing the implications of saturation conditions helps in accounting for latent heat and energy transfer during phase transitions.

Energy Balance in Mixing Processes

The conservation of energy in a steady-flow system requires that the total energy entering through the streams equals the total energy leaving the system, assuming no work interactions or heat losses as in an insulated chamber. It involves balancing the enthalpies and flow rates of streams with different temperatures and phases. This energy balance is key to determining how different streams mix to achieve a particular exit state.

Conservation of Mass

This fundamental principle states that the total mass entering a control volume must equal the mass exiting it under steady?state conditions. In mixing problems, it is used to ensure that the sum of the mass flow rates from individual input streams equals the overall output mass flow rate. This concept is essential when determining unknown flow rates in interconnected thermodynamic processes.

Transcript

00:01 An insulated mixing chamber receives r134a at a given state with a low line velocity.

00:08 And another line brings in r134a as well as a saturated liquid at a different state.

00:16 We are given a single exit flow state and velocity, and we want to find the mass flow rate for the second line.

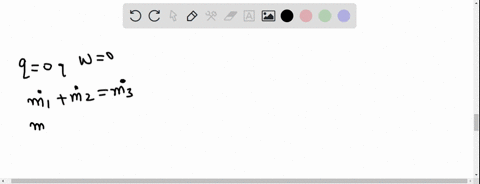

00:25 So if we take our control volume for mixing chamber, we have a steady state process with two inlets and one exit flow.

00:33 There is no heat transfer, nor is there any work due to shaft or boundary work.

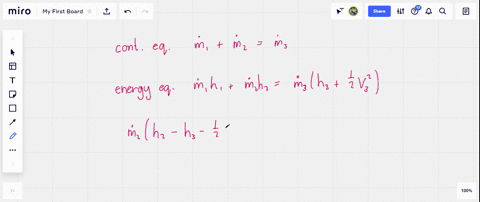

00:41 So we'll first write the continuity equation for this process.

00:52 The continuity equation is simply the mass flow rates of the two inlets, m .1, plus m .2, the two inlet lines must equal to the mass flow rate at the exit m .3.

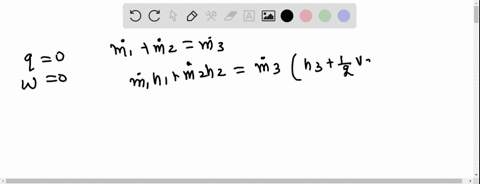

01:07 And so we can then write the energy equation, which also simplifies.

01:17 As m .1, h1, which is the enthalpy plus m.

01:25 Dot 2, h2, is equal to the energy at the exit duct, which is m .03 into h3 plus the kinetic energy term, a half v3 squared.

01:44 So we can rewrite this equation.

01:47 Remember we want to find m .2 here.

01:50 The flow rate, the mass flow rate of the second line.

01:53 So rearranging this equation and making it easier to solve for m2 or m .2, we can group this as m .2 into h2 minus h3 and this is using our continuity equation from above minus a half v3 squared is equal to m .1.

02:17 So essentially we're replacing m .3 with m .1 plus m...
