An insulated piston-cylinder device contains 0.018 m^3 of saturated refrigerant-134a vapor at 0

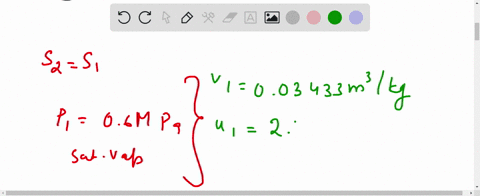

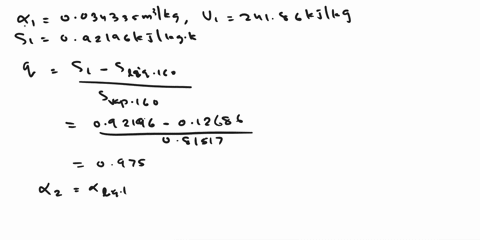

step 1 Hi friends, the initial specific volume and trophy and internal energy of R134A using David A12

An insulated piston-cylinder device contains 0.018 m^3 of...

An insulated piston-cylinder device contains $0.018 \mathrm{~m}^{3}$ of saturated refrigerant-134a vapor at 0.6 MPa pressure. The refrigerant is now allowed to expand in a reversible manner until the pressure drops to 0.16 MPa. Determine the change in the exergy of the refrigerant during this process and the reversible work. Assume the surroundings to be at $25^{\circ} \mathrm{C}$ and $100 \mathrm{kPa}$.

Key Concepts

Exergy

Exergy is the measure of the maximum useful work obtainable from a system as it comes into equilibrium with its surroundings. It evaluates the quality of energy by considering not only the amount of energy but also its potential to perform work. Exergy analysis is essential for identifying losses due to irreversibilities in any thermodynamic process.

Reversible Process

A reversible process is an idealized process where changes occur infinitesimally slowly, keeping the system in equilibrium at every stage. In such a process, there is no generation of entropy, and the work interactions represent the maximum or minimum possible values. This provides a benchmark against which real, irreversible processes are compared.

Reversible Work

Reversible work refers to the maximum work that can be performed by a system undergoing a reversible process. In thermodynamic problems, it sets the upper limit for work extraction or input when no dissipative effects are present, assuming all processes occur ideally with no losses.

Piston-Cylinder Device

A piston-cylinder device is a common apparatus used in thermodynamic analysis to study energy transfer, work interactions, and state changes in a confined system. It serves as a simplified model to analyze processes like expansion or compression, allowing for the direct application of energy and exergy principles.

Insulated (Adiabatic) Process

An insulated or adiabatic process is one in which no heat is exchanged with the environment. In such processes, changes in the system’s energy are solely due to work interactions. This concept is important for analyzing systems where thermal insulation simplifies the energy balance and highlights the work-related energy changes.

Saturation and Phase Equilibrium

Saturation and phase equilibrium refer to the state of a substance when it exists at the boundary between two phases, like liquid and vapor, at a given temperature and pressure. Understanding these concepts is crucial for analyzing systems that involve phase change or operate near phase boundaries, as it affects the thermodynamic properties and behavior of the working fluid.

Transcript

Please give Ace some feedback
