An insulated tank has an air inlet, ω1=0.0084 and an outlet, T2=22^∘ C, Φ2=90 %, both at 100 kPa

step 1 Hi, everybody. So for this one, we need to find the forest study operation, find the outlet -spe

An insulated tank has an air inlet, ω1=0.0084 and an outlet,...

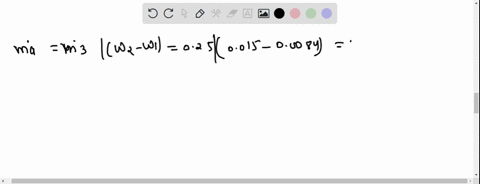

An insulated tank has an air inlet, $\omega_{1}=0.0084$ and an outlet, $T_{2}=22^{\circ} \mathrm{C}, \Phi_{2}=90 \%,$ both at 100 kPa. A third line sprays $0.25 \mathrm{kg} / \mathrm{s}$ of water at $80^{\circ} \mathrm{C}$ and $100 \mathrm{kPa}$, as shown in Fig. P12.97. For steady operation, find the outlet specific humidity, the mass flow rate of air needed, and the required air inlet temperature, $T_{1}.$

Key Concepts

Steady-State Operation

This concept refers to the condition in which the properties of the system (such as temperature, pressure, and humidity) do not change over time. In the context of a control volume like an insulated mixing tank, the steady-state assumption implies that the mass and energy entering the tank exactly equals the mass and energy leaving it, allowing for the establishment of balance equations over the control volume.

Conservation of Mass

In any process, the total mass entering a control volume must equal the total mass exiting plus any accumulation inside; however, under steady?state conditions no accumulation occurs. When dealing with humid air, it is important to track both the mass of dry air and the mass of water (in vapor or liquid form), ensuring that the mass transfer of water from a liquid spray and the associated changes in humidity are all accounted for.

Conservation of Energy (Control Volume Analysis)

For an insulated system, there is no heat transfer with the surroundings, meaning the only energy changes arise due to the mixing of streams with different enthalpies. The energy balance, which involves the enthalpy of both the dry air and the water vapor, must be established such that the energy in the incoming streams equals the energy in the outgoing streams, allowing for the determination of unknown temperatures or energy contents.

Psychrometric Properties of Humid Air

This area focuses on the properties of moist air, including specific humidity (the mass of water vapor per unit mass of dry air), relative humidity, dry-bulb and wet-bulb temperatures, and enthalpy. Understanding these properties is crucial when analyzing systems where water vapor is added or removed, as they govern the thermodynamic behavior of the air-water vapor mixture.

Mixing Processes in Humid Air Systems

When streams of air and water (or water vapor) mix, they lead to changes in the overall humidity, temperature, and energy content of the mixture. Determining the resultant state after mixing involves applying both mass and energy balances while using psychrometric relations to account for the contribution of water addition, which alters the specific humidity and enthalpy of the final air stream.
