An "isotype" step junction is one in which the same impurity type doping changes from one concentration value to another value. An $\mathrm{n}$ -n isotype doping profile is shown in Figure P7.12. (a) Sketch the thermal equilibrium energy-band diagram of the isotype junction. ( $b$ ) Using the energy-band diagram, determine the built-in potential barrier. ( $c$ ) Discuss the charge distribution through the junction.
Step 1
This can be done using the formula $E_F - E_{Fi} = kT \ln \left(\frac{N_D}{N_i}\right)$, where $kT$ is the thermal energy, $N_D$ is the donor concentration, and $N_i$ is the intrinsic carrier concentration. Show more…
Show all steps
Your feedback will help us improve your experience
Chai Santi and 90 other educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

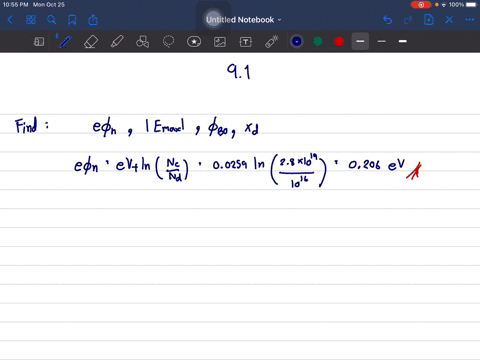

Consider a contact between $\mathrm{Al}$ and $\mathrm{n}$ Si doped at $N_{d}=10^{16} \mathrm{~cm}^{-3} . T=300 \mathrm{~K}$. (a) Draw the energy-band diagrams of the two materials before the junction is formed (b) Draw the ideal energy band at zero bias after the junction is formed. ( $c$ ) Calculate $\phi_{B 0}, x_{d}$, and $\mathrm{E}_{\max }$ for part $(b) .(d)$ Repeat parts $(b)$ and $(c)$ using the data in Figure $9.5 .$

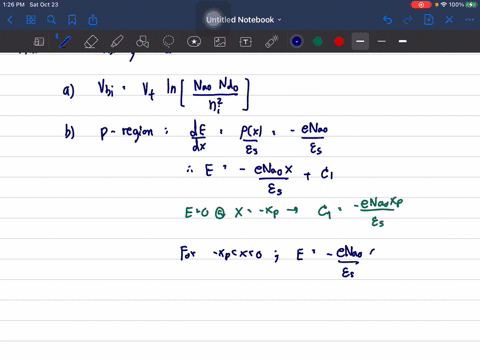

A pn junction has the doping profile shown in Figure $\mathrm{P} 7.33$. Assume that $x_{n}>x_{0}$ for all reverse-biased voltages. (a) What is the built-in potential across the junction? (b) For the abrupt junction approximation, sketch the charge density through the junction. ( $c$ ) Derive the expression for the electric field through the space charge region.
