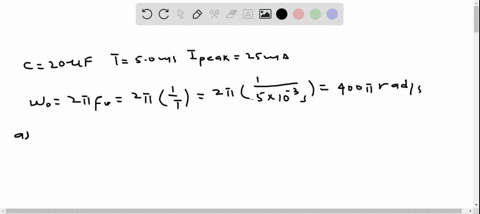

An L C circuit with a 20-μF capacitor oscillates with period 5.0 ms. The peak current is 25 mA.

step 1 Hi, here in this given problem in the LC circuit, circuit containing inductor and capacitor, cap

An L C circuit with a 20-μF capacitor oscillates with period...

Key Concepts

Peak Values in Reactive Circuits

In resonant circuits like the LC circuit, the peak current and peak voltage are related through the reactance of the circuit components. Specifically, the inductor’s reactance, given by ?L at resonance, links the peak current to the peak voltage via the relationship V_peak = I_peak × ?L. This concept is key in understanding how maximum energy is handled and transferred within the circuit during oscillations.

Relationship Between Inductance, Capacitance, and Oscillation Period

For LC circuits, the resonant angular frequency is determined by the values of the inductor and capacitor through the formula ? = 1/?(LC). Combining this with the period relationship (T = 2?/?) allows one to derive the inductance or capacitance if the other component and the oscillation period are known. This relation is critical for analyzing and designing resonant circuits.

LC Circuit Oscillations

An LC circuit is a basic electrical oscillator consisting of an inductor (L) and a capacitor (C) connected together. It exhibits natural oscillations in which energy is exchanged back and forth between the magnetic field of the inductor and the electric field of the capacitor. This interplay forms the basis of a wide range of resonant circuits used in filtering, tuning, and timing applications.

Angular Frequency and Period Relationship

In any oscillator, including LC circuits, the angular frequency (?) is related to the period (T) by the equation ? = 2?/T. The angular frequency is a measure of how fast the system oscillates in radians per second, while the period is the time it takes for one complete oscillation. This relationship is fundamental in translating time-domain observations into frequency-domain behavior.
