An L-R-C series circuit has L = 0.450 H, C = 2.50 ×10^-5 F, and resistance R. (a) What is the

step 1 Hi, here in this given problem, in the given LRC series circuit, self -inductance of the coil th

An L-R-C series circuit has L = 0.450 H, C = 2.50 ×10^-5 ...

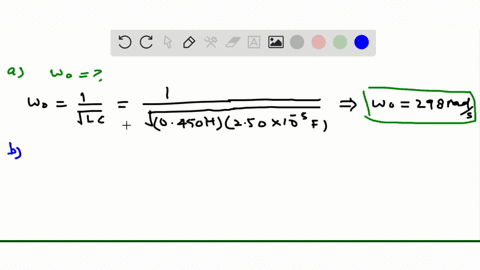

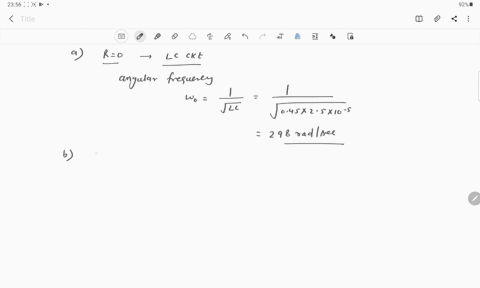

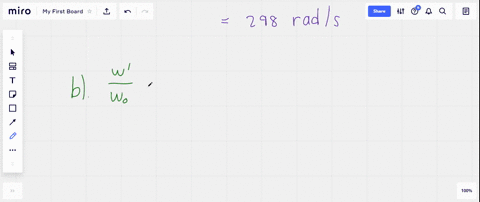

An $L$-$R$-$C$ series circuit has $L = 0.450$ H, $C = 2.50 \times 10^{-5} \, \mathrm{F}$, and resistance $R$. (a) What is the angular frequency of the circuit when $R = 0$? (b) What value must $R$ have to give a 5.0$\%$ decrease in angular frequency compared to the value calculated in part (a)?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Impact of Resistance on Oscillation Frequency

This concept emphasizes how adding resistance to an LC circuit affects its oscillatory behavior. Specifically, the resistance reduces the angular frequency, and by quantifying this effect (such as achieving a specific percentage decrease), one can design circuits with desired damping characteristics. This understanding is crucial for tuning circuits in practical applications where controlled energy loss is needed.

Angular Frequency of an LC Circuit

This concept refers to the natural oscillation rate of an LC circuit without resistance. It is determined by the formula ?? = 1/?(LC), where L is the inductance and C is the capacitance. This frequency is intrinsic to the LC pair and defines how fast the circuit would oscillate if there were no energy losses.

Damped Oscillations in an RLC Circuit

When a resistor is introduced into an LC circuit, the oscillations become damped due to energy dissipation. The angular frequency in a damped RLC series circuit is given by ? = ?(1/LC - R²/(4L²)). This formula illustrates that the resistance causes a reduction in the oscillation frequency compared to the undamped case.
