An $L-R-C$ series circuit with $L$ = 0.120 H, $R$ = 240 $\Omega$, and $C$ = 7.30 $\mu$F carries an rms current of 0.450 A with a frequency of 400 Hz. (a) What are the phase angle and power factor for this circuit? (b) What is the impedance of the circuit? (c) What is the rms voltage of the source? (d) What average power is delivered by the source? (e) What is the average rate at which electrical energy is converted to thermal energy in the resistor? (f) What is the average rate at which electrical energy is dissipated (converted to other forms) in the capacitor? (g) In the inductor?

An $L-R-C$ series circuit with $L$ = 0.120 H, $R$ = 240 $\Omega$, and $C$ = 7.30 $\mu$F carries an rms current of 0.450 A with a frequency of 400 Hz. (a) What are the phase angle and power factor
for this circuit? (b) What is the impedance of the circuit? (c) What is the rms voltage of the source? (d) What average power is delivered by the source? (e) What is the average rate at which electrical
energy is converted to thermal energy in the resistor? (f) What is the average rate at which electrical energy is dissipated (converted to other forms) in the capacitor? (g) In the inductor?

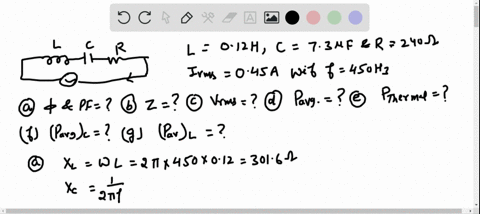

Key Concepts

Average Power in AC Circuits

Average power in AC circuits refers to the net power delivered by an AC source over a complete cycle. In circuits containing resistors, inductors, and capacitors, only the resistor dissipates real power as heat, while the reactive elements (inductor and capacitor) temporarily store energy and return it to the circuit. Thus, the average power calculation typically focuses on the resistive component, often computed using the product of the rms voltage and current and the power factor.

Inductive and Capacitive Reactance

Inductive reactance and capacitive reactance quantify the opposition provided by inductors and capacitors, respectively, to changes in current or voltage in an AC circuit. Inductive reactance increases with frequency, while capacitive reactance decreases with frequency. These frequency-dependent properties contribute to the overall phase difference between voltage and current and are essential for understanding the dynamic behavior of AC circuits.

Energy Conversion and Dissipation in Circuit Elements

In AC circuits, energy conversion and dissipation occur differently in various components. Resistors convert electrical energy into thermal energy continuously, dissipating power as heat. In contrast, capacitors and inductors store and release energy cyclically without net loss over a full cycle, meaning they do not dissipate energy as heat on average. This fundamental distinction is important for understanding how energy flows and is consumed in AC circuits.

Root Mean Square (RMS) Values

RMS (root mean square) values are used in AC circuit analysis to represent effective voltage or current values that deliver the same average power to a resistive load as a corresponding DC voltage or current. These values are particularly useful because they allow for a consistent way to calculate power in circuits where voltage and current vary sinusoidally over time.

L-R-C Series Circuit

An L-R-C series circuit is an alternating current circuit that includes an inductor (L), a resistor (R), and a capacitor (C) connected in series. This circuit configuration is central in studying how reactive components (inductors and capacitors) interact with resistive elements, particularly under the influence of sinusoidal sources. The behavior of such circuits depends on the interplay between resistance, inductive reactance, and capacitive reactance, which can lead to interesting phenomena such as resonance and varying phase relationships between voltage and current.

Impedance in AC Circuits

Impedance is the generalized concept of resistance used in AC circuits and extends the idea of resistance to include the effects of reactance from inductors and capacitors. Represented as a complex number, impedance combines both the real part (resistance) and the imaginary part (reactance). In series circuits, the total impedance is the vector sum of the resistive and reactive components, and it dictates how much the circuit opposes the flow of sinusoidal current.

Phase Angle and Power Factor

The phase angle in an AC circuit represents the angular difference between the voltage and the current. It is determined by the relative sizes of the reactive and resistive components of the circuit. The power factor, which is the cosine of the phase angle, provides a measure of how effectively the circuit converts electrical energy into useful work. A power factor of one indicates that all the power is effectively used, whereas a lower power factor points to a higher proportion of reactive power that does not perform real work.
