An RC circuit has a time constant of 3.10 s. At t=0, the process of charging the capacitor begi

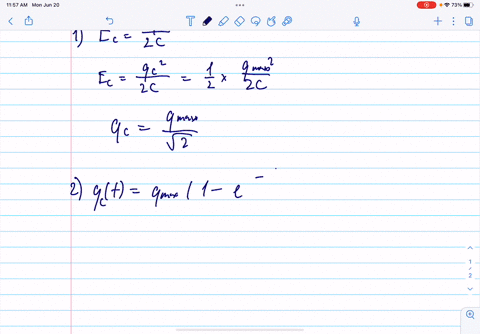

step 1 Hi, here in this given problem, time constant of RC circuit, series circuit that is given as tau

An RC circuit has a time constant of 3.10 s. At t=0, the...

An $\mathrm{RC}$ circuit has a time constant of $3.10 \mathrm{~s}$. At $t=0,$ the process of charging the capacitor begins. At what time will the energy stored in the capacitor reach half of its maximum value?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Energy Storage in Capacitors

The energy stored in a capacitor is given by the equation E=1/2 CV^2, indicating that the stored energy is proportional to the square of the voltage. This quadratic relationship means that changes in voltage have a more pronounced effect on the energy stored, which is essential when calculating how long it takes for a capacitor to reach a given fraction of its maximum energy.

Exponential Charging Behavior

In an RC circuit, the voltage across the capacitor follows an exponential growth model during the charging process, represented by the formula V(t)=Vmax*(1-e^(-t/RC)). This concept explains how the capacitor gradually approaches its maximum voltage and is vital for analyzing transient responses in the circuit.

RC Circuit Time Constant

The time constant in an RC circuit, defined as the product of the resistance (R) and capacitance (C), represents the characteristic time over which the capacitor charges or discharges. It is crucial for understanding how quickly the circuit responds to changes, as approximately 63.2% of the charging process is completed in one time constant.
