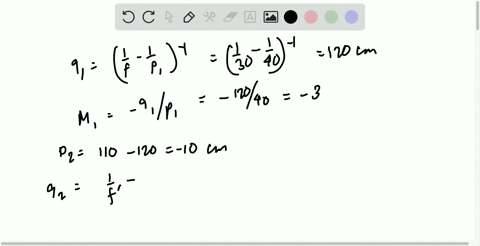

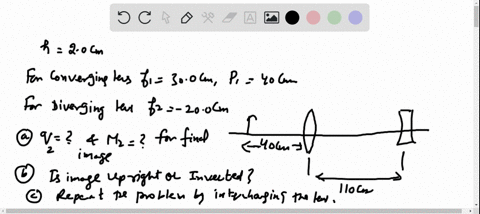

An object 2.00 cm high is placed 40.0 cm to the left of a converging lens having a focal length of 30.0 cm. A diverging lens having a focal length of 220.0 cm is placed 110 cm to the right of the converging lens. (a) Determine the final position and magnification of the final image. (b) Is the image upright or inverted? (c) Repeat parts (a) and (b) for the case in which the second lens is a converging lens having a focal length of 120.0 cm.

An object 2.00 cm high is placed 40.0 cm to the left of a converging lens having a focal length of 30.0 cm. A diverging lens having a focal length of 220.0 cm is placed 110 cm to the right of the converging lens. (a) Determine the final position and magnification of the final image. (b) Is the image upright
or inverted? (c) Repeat parts (a) and (b) for the case in which the second lens is a converging lens having a focal length of 120.0 cm.

Key Concepts

Lens Formula

This fundamental equation, given by 1/f = 1/d_o + 1/d_i, relates the focal length of a lens to the object distance and the image distance. It is essential in determining where the image will form for a single lens and is the starting point for analyzing more complex multi-lens systems.

Magnification

Magnification is defined as the ratio of the height of the image to the height of the object, and it is also related to the distances from the lens via m = -d_i/d_o. This concept is crucial in understanding not just the size change of the image, but also the orientation (upright or inverted) relative to the object.

Real and Virtual Images

Real images are formed when light rays converge and can be projected onto a screen, whereas virtual images occur when rays diverge and the image can only be seen by looking into the lens. Recognizing the nature of an image is critical when applying the lens formula and sign conventions in optical systems.

Multiple Lens Systems

In systems with more than one lens, the image formed by one lens often serves as the object for the next. Analyzing such systems sequentially requires careful application of the lens formula for each lens and correct handling of distances between lenses, which is key for determining the final image properties.

Sign Conventions

Accurate analysis of optical systems relies on an agreed-upon set of sign conventions. These dictate the positive and negative values for distances and focal lengths, helping to distinguish between real and virtual objects or images, and ensuring consistent application across multiple lenses.
